The IPW65R025CM8 is a CoolMOS™ CM8 650V power MOSFET launched by Infineon. It is designed based on the Super Junction (SJ) principle and features low switching and conduction losses. This MOSFET features excellent commutation tolerance and is thus suitable for both hard-switching and soft-switching topologies.

Main specifications

FET type: N-channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 650 V

Current at 25°C - continuous drain (Id) : 90A (Tc)

Drive voltage (maximum Rds On, minimum Rds On) : 10V

On-resistance (maximum value) at different ids and Vgs: 25 milliohms @ 40A, 10V

Vgs(th) (maximum value) at different ids: 4.7V @ 1.06mA

Gate charge (Qg) at different Vgs (maximum value) : 124 nC @ 10 V

Vgs (maximum value) : ±20V

Input capacitance (Ciss) at different Vds (maximum value) : 5910 pF @ 400 V

FET function: -

Power dissipation (maximum) : 431W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Through hole

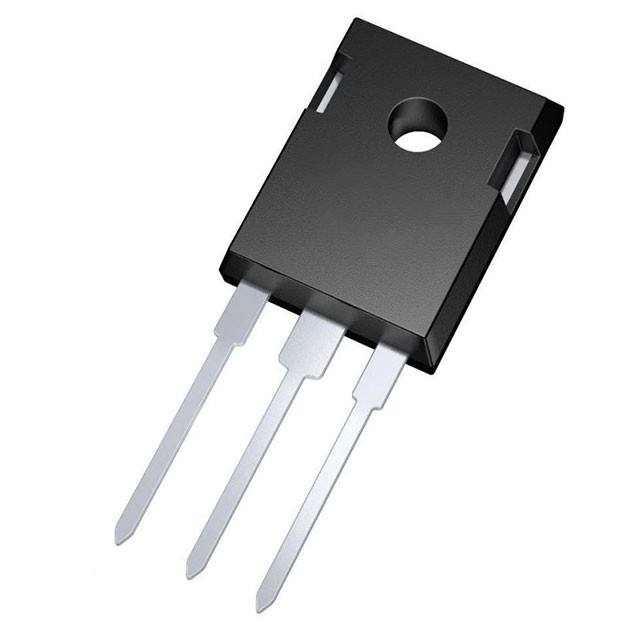

Supplier device packaging: PG-TO247-3

Application scenarios

The IPW65R025CM8 is designed in compliance with RoHS standards and fully complies with JEDEC industrial application standards. Typical applications include LLC resonant converters, AI servers, telecommunication power supplies and data centers.
