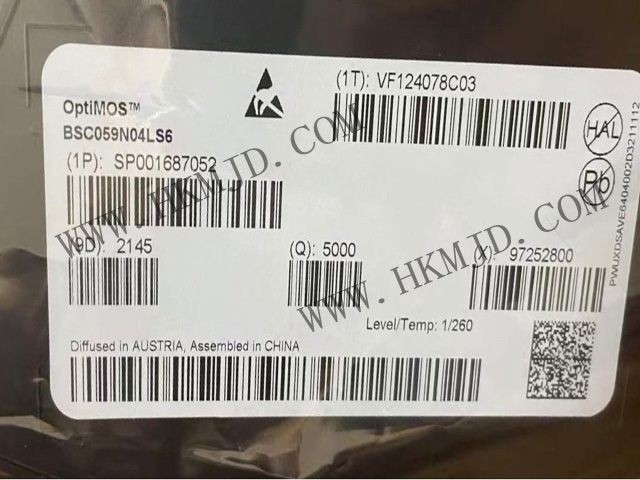

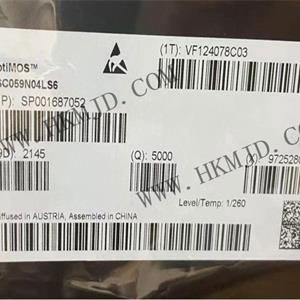

BSC059N04LS6 utilises Infineon's sixth-generation OptiMOS™ process to achieve extremely low on-resistance and low gate charge in a 5 mm × 6 mm TDSON-8 surface-mount package, optimised for high-efficiency DC-DC buck, synchronous rectification, and motor drive applications.

BSC059N04LS6 Features

• Ultra-low RDS(on): Typical 4.7 mΩ / Maximum 5.9 mΩ (VGS = 10 V, ID = 50 A)

• High continuous drain current: 59 A (Tc = 25 °C, limited by package thermal dissipation)

• Low gate charge: Qg(0 V…10 V) typical 9.4 nC, favourable for high-frequency drive

• Avalanche-rated & 100% tested, high dv/dt immunity

• Junction temperature range: -55 °C to +175 °C, suitable for harsh environments

• Lead-free, RoHS-compliant & halogen-free, meeting environmental requirements

BSC059N04LS6 Specifications

Drain-source voltage: 40 V

Continuous drain current: 59 A

On-resistance RDS(on) max: 5.9 mΩ @ 10 V

Gate threshold voltage VGS(th): 1.3 – 2.3 V

Total gate charge Qg: 9.4 nC (typ)

Input capacitance Ciss: 830 pF (typ)

Package: TDSON-8 (5 mm × 6 mm)

Power dissipation: 83 W (Tc=25 °C)

BSC059N04LS6 Typical Applications

• Synchronous buck DC-DC converter (12 V/24 V input)

• Motor drive, BLDC controller

• Server, base station POL power supply

• In-vehicle USB charger, LED driver

• Battery management, load switch
