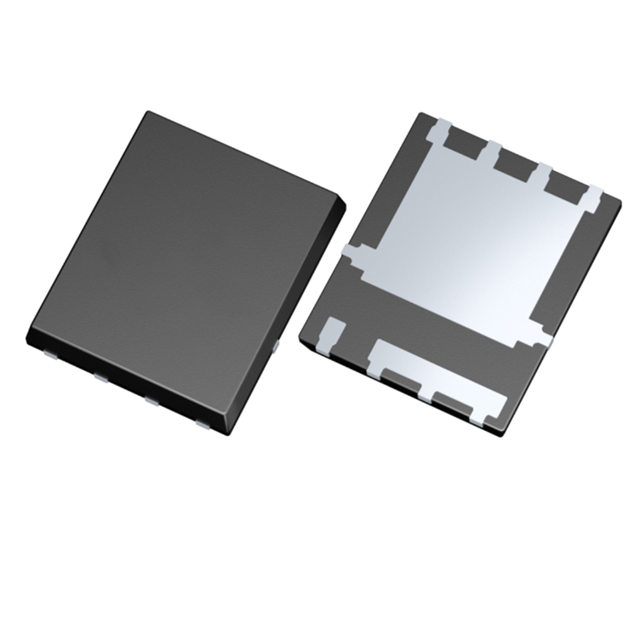

For picture reference, please see the specifications
< >

Commodity Model:ISC033N03LF2S

Trade Name:N-Channel Power MOSFET

Brand:INFINEON

Particular Year:25+

Package:TDSON-8

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
ISC033N03LF2S
Package
TDSON-8
Describe
108A, StrongIRFET™ 2 30V power MOSFET

Product Description

The ISC033N03LF2S device is a 108A, StrongIRFET™ 2 30V power MOSFET with a best-in-class RDS(on) of 3.3 mOhm, available in a SuperSO8 5x6 package. This product is suitable for a wide range of applications from low to high switching frequencies.


The ISC033N03LF2S mainly has the following parameters:

FET type: N-channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 30 V

Current at 25°C - continuous drain (Id) : 22A (Ta), 108A (Tc)

Drive voltage (maximum Rds On, minimum Rds On) : 4.5V, 10V

On-resistance (maximum value) at different ids and Vgs: 3.3 milliohms @ 30A, 10V

Vgs(th) (maximum value) at different ids: 2.35V @ 30µA

Gate charge (Qg) at different Vgs (maximum value) : 32 nC @ 10 V

Vgs (maximum value) : ±20V

Input capacitance (Ciss) at different Vds (maximum value) : 1400 pF @ 15 V

FET function: -

Power dissipation (maximum) : 3W (Ta), 71W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Installation type: Surface mount type

Supplier device packaging: PG-TDSON-8


Compared with previous technologies, ISC033N03LF2S has achieved up to 40% improvement in RDS(on), while also featuring up to 60% enhancement in FOM and excellent robustness. Typical applications include:

UPS

Adapter

Motor driver

Battery management

Light electric vehicle

Power Management (SMPS

Battery-powered application
