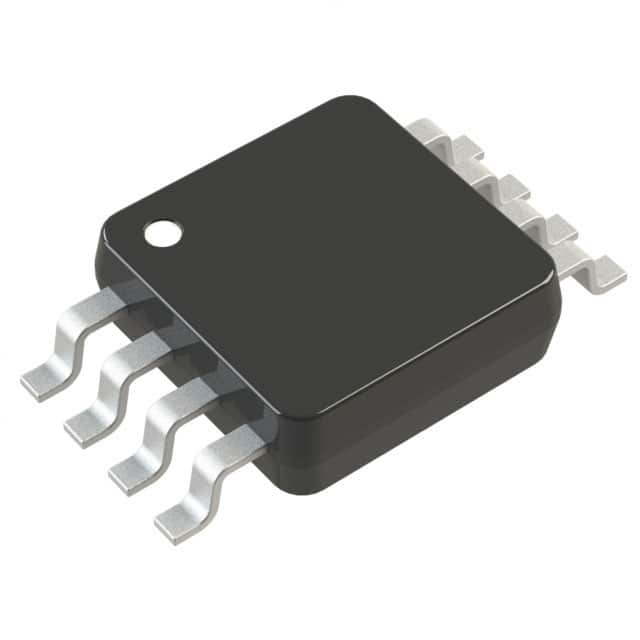

For picture reference, please see the specifications
< >

Commodity Model:ADA4077-2ARMZ

Trade Name:Operational Amplifiers

Brand:ADI

Particular Year:25+

Package:MSOP-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADA4077-2ARMZ
Package
MSOP-8
Describe
4 MHz, 7 nV/√Hz, low offset and drift, high-precision dual-channel amplifier

Product Description

The ADA4077-2ARMZ is a basket of dual-channel operational amplifiers, featuring extremely low offset voltage and drift, as well as low input bias current, noise and power consumption. When using capacitive loads of 1000 pF or more, the output is stable and no external compensation is required.


Technical parameters

Amplifier type: Standard

Number of circuits: 2

Output type: -

Slew rate: 1.2V/µs

Gain-bandwidth product: 3.6 MHz

-3 dB bandwidth: 5.5 MHz

Current - Input bias: 400 pA

Voltage - Input compensation: 50 µV

Current - Power supply: 400µA (x2 channels)

Current - Output/Channel: 10 mA

Voltage - span (minimum value) : 5 V

Voltage - span (maximum value) : 30 V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Packaging/Housing: 8-MSOP


Application scenarios

The applications of the ADA4077-2ARMZ amplifier include sensor signal conditioning (such as thermocouples, resistance temperature detectors (RTDS), strain gauges), process control front-end amplifiers, and precise diode power measurement in optical and wireless transmission systems. The ADA4077-2ARMZ is mainly applicable to portable instruments and meters powered by lines, precision filters, and voltage or current measurement and level setting.


Associated Products

Model

Brand

Package

Quantity

Describe

OPA2991SIRUGR

TI

X2QFN-10

12000

Dual-channel, 40V, 4.5MHz, low-power operational amplifier

AD8065ARTZ

ADI

SOT-23-5

2500

High-performance, 145 MHz FastFET™ operational amplifier

AD8627AKSZ

ADI

SC70-5

25000

Precision, low power consumption, single power supply, JFET amplifier, using a 5-pin SC70 package

OPA2391DGKR

TI

VSSOP-8

3500

Dual, micro power, high speed power ratio, low bias current RRIO precision operational amplifier

OPA2892DGNR

TI

HVSSOP-8

4000

Dual-channel, 2GHz, 10V/V stable 0.95nV√Hz operational amplifier

OPA2891DR

TI

SOIC-8

3500

Dual-channel, 180MHz, 0.95nV√Hz operational amplifier

OPA4392PWR

TI

TSSOP-14

3000

Four-channel (10μV) low-noise (6nV/rtHz) milliampere bias current e-trim™ operational amplifier

OPA593DNTR

TI

WSON-12

3500

85V, 100µV, bandwidth (10MHz), high output current (250mA) precision operational amplifier

OPA596DBVR

TI

SOT-23-5

4000

85V high speed (100V/μs) power (400µA) ratio precision operational amplifier

OPA2383DGKR

TI

VSSOP-8

2000

Low-Power High-Precision 2.5MHz Zero-Drift operational amplifier
