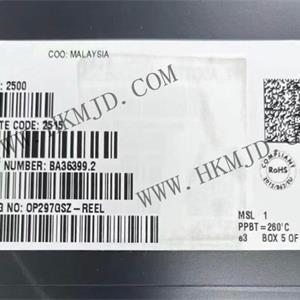

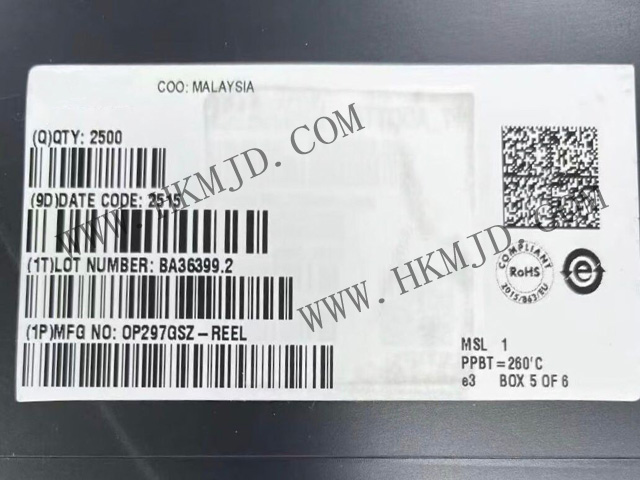

For picture reference, please see the specifications
< >

Commodity Model:OP297GSZ

Trade Name:Operational Amplifier

Brand:ADI

Particular Year:25+

Package:SOIC-8

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
OP297GSZ
Package
SOIC-8
Describe
Low bias current, precision (dual channel) operational amplifier

Product Description

OP297GSZ7 is a dual-channel operational amplifier that integrates precision performance into a space-saving industrial-standard 8-pin SO package, combining precision performance with low power consumption and ultra-low input bias current, making it suitable for a wide range of applications.


The OP297GSZ7's precision performance includes extremely low offset (less than 50 µV) and low drift (less than 0.6 µV/°C). The open-loop gain exceeds 2000 V/mV, ensuring high linearity in any application. The common-mode rejection ratio exceeds 120 dB, effectively eliminating errors caused by common-mode signals. The power supply rejection ratio exceeds 120 dB, minimising offset voltage variations in battery-powered systems. Additionally, each amplifier draws less than 625 µA of supply current and can operate with supply voltages as low as ±2 V.


The OP297GSZ7 maintains picoamp-level bias current across all temperatures using a super-beta input stage with bias current cancellation. This contrasts with FET-input operational amplifiers. FET-input operational amplifiers have bias currents in the picoampere range at 25°C, but the bias current doubles for every 10°C increase in temperature; when the temperature exceeds 85°C, the bias current reaches the microampere range. The OP297GSZ7 has an input bias current of less than 100 pA at 25°C and remains below 450 pA across the entire military temperature range.


OP297GSZ7 Features

Low offset voltage: 50 µV (maximum)

Low offset voltage drift: 0.6 µV/°C (maximum)

Ultra-low bias current: 100 pA (maximum)

Ultra-high open-loop gain: 2000 V/mV (minimum)

Low supply current: (per amplifier)

625 µA (maximum)

Supply voltage: ±2 V to ±20 V

High common-mode rejection: 120 dB (minimum)


OP297GSZ7 Applications

Strain gauges and bridge amplifiers

High-stability thermocouple amplifiers

Instrumentation amplifiers

Photocurrent monitors

High-gain linear amplifiers

Long-term integrators/filters

Sample-and-hold amplifiers

Peak detectors

Logarithmic amplifiers

Battery-powered systems
