The ADP7142ACPZN3.3 is a CMOS low-dropout (LDO) linear regulator with an operating voltage range of 2.7V to 40V and an output current of up to 200mA. This high input voltage LDO is suitable for high-performance analog and mixed-signal circuits that regulate power rails from 39V to 1.2V. The ADP7142ACPZN3.3 adopts an advanced proprietary architecture, offering high power supply suppression and low noise characteristics. It can achieve excellent line and load transient response performance with just a 2.2 μF small ceramic output capacitor. The output noise of the ADP7142ACPZN3.3 voltage regulator is 11 μV rms, which is independent of the fixed option output voltage of 5 V and below.

Technical parameters

Output configuration: positive

Output type: Fixed

Number of voltage regulators: 1

Voltage - Input (maximum value) : 40V

Voltage - Output (minimum value/fixed) : 3.3V

Voltage - Output (maximum value) : -

Voltage drop (maximum value) : 0.42V @ 200mA

Current - Output: 200mA

Current-static (Iq) : 140 µA

Current - power supply (maximum value) : 320 µA

PSRR: -

Control characteristics: Enable, soft start

Protection functions: Over-temperature, short circuit

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

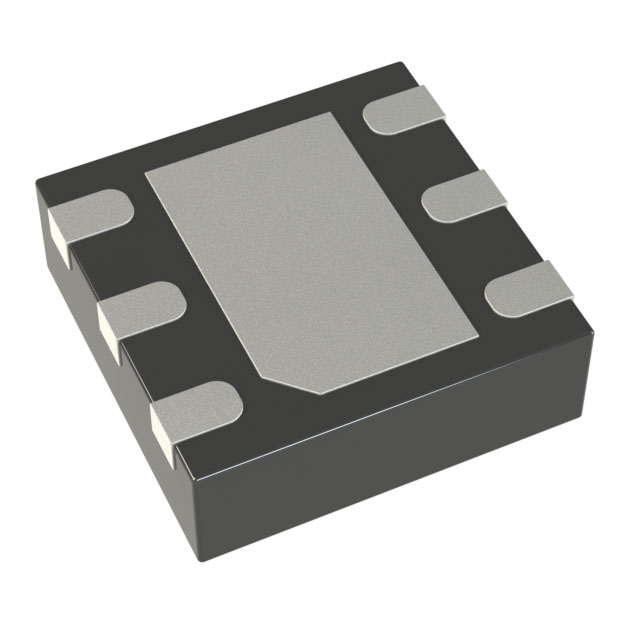

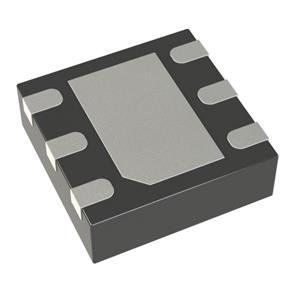

Packaging/Housing: 6-LFCSP

Application scenarios

The ADP7142ACPZN3.3 is suitable for scenarios that require low noise, high power supply rejection ratio and compact packaging, such as high-performance analog circuits and mixed-signal circuits. ‌
