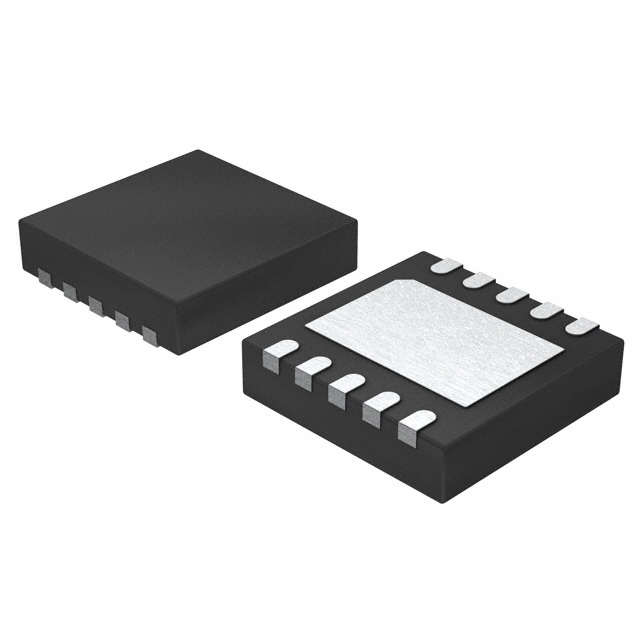

The ADP7156ACPZ-3.3 is a linear voltage regulator that is powered by a 2.3V to 5.5V supply and has a maximum output current of 1.2A. The ADP7156ACPZ-3.3 adopts an advanced proprietary architecture, offering high power supply suppression and ultra-low noise characteristics. It only requires a 10 μF ceramic output capacitor to achieve outstanding line and load transient response performance. This device has the following core characteristics and parameters:

Input voltage range: 2.3V to 5.5V

It can provide 16 standard voltages ranging from 1.2V to 3.3V

Maximum load current: 1.2A

Low noise

Total integral noise from 100 Hz to 100 kHz: 0.9 µV rms

Total integral noise from 10 Hz to 100 kHz: 1.6 µV rms

Noise spectral density: 1.7 nV/√Hz (10 kHz to 1 MHz)

Power Supply Rejection Ratio (PSRR

80 dB (1 kHz to 100 kHz); 60 dB (1 MHz), VOUT = 3.3 V, VIN = 4.0 V

Pressure difference: 120 mV (typical value, IOUT = 1.2 A, VOUT = 3.3 V)

Initial accuracy: ±0.6% (when ILOAD = 10 mA)

Initial accuracy across the entire line, load and temperature range: ±1.5%

Static current: IGND = 4.0 mA (no-load), 7 mA (1.2 A)

Low turn-off current: 0.2 μA

Maintain stability by using a 10 µF ceramic output capacitor

Precision enabling

10-pin 3mm x 3mm LFCSP package

Passed the AEC-Q100 automotive application certification

Typical applications

Adapted to noise-sensitive applications: phase-locked loop (PLL), voltage-controlled oscillator (VCO), and PLL with integrated VCO

Communication and infrastructure

Return route and microwave link
