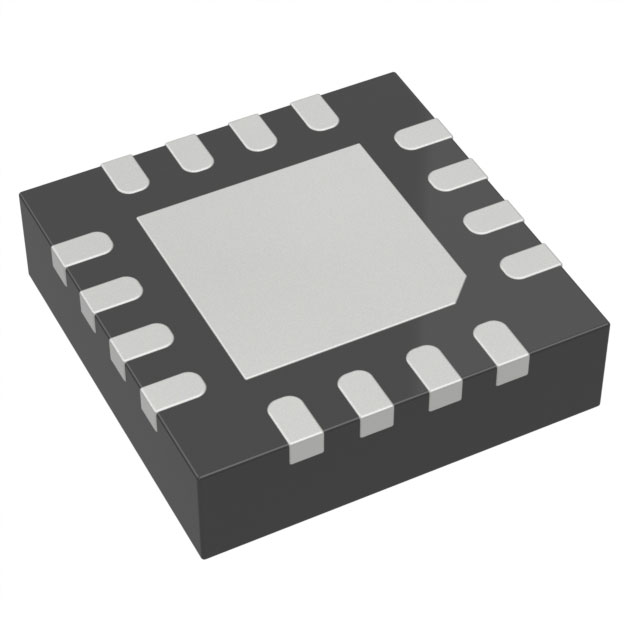

For picture reference, please see the specifications
< >

Commodity Model:ADP1762ACPZ-1.3

Trade Name:LDO Linear Voltage Regulators

Brand:ADI

Particular Year:25+

Package:LFCSP-16

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADP1762ACPZ-1.3
Package
LFCSP-16
Describe
2A. Low VIN, low noise, CMOS linear regulator

Product Description

The ADP1762ACPZ-1.3 is a low-noise, low-dropout (LDO) linear regulator. It operates with a single input power supply, with an input voltage as low as 1.10V. There is no need for an external bias power supply to enhance efficiency, and it provides an output current of up to 2A.


The ADP1762ACPZ-1.3 features A differential pressure as low as 62 mV (typical value, 2A load), a small working margin, while maintaining regulation and providing higher efficiency.


The ADP1762ACPZ-1.3 has the following technical parameters

Output configuration: positive

Output type: Fixed

Number of voltage regulators: 1

Voltage - Input (maximum value) : 1.98V

Voltage - Output (minimum value/fixed) : 1.3V

Voltage - Output (maximum value) : -

Voltage drop (maximum value) : 0.095V @ 2A

Current - output: 2A

Current - static (Iq) : 8 mA

Current - power supply (maximum value) : 14 mA

PSRR: 63dB to 34dB (10 KHZ to 1MHz)

Control characteristics: Enable, good power supply, soft start

Protection functions: Current limiting, thermal overload

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Housing: 16-LFCSP


Application scenarios

Adapt to noise-sensitive applications: such as RF transceivers, analog-to-digital converters (ADC) and digital-to-analog converters (DAC) circuits, phase-locked loops (PLL), voltage-controlled oscillators (VCO), and clock integrated circuits

Power supplies for Field Programmable Gate Array (FPGA) and digital signal processor (DSP)

Medical and health care

Industry and instrumentation
