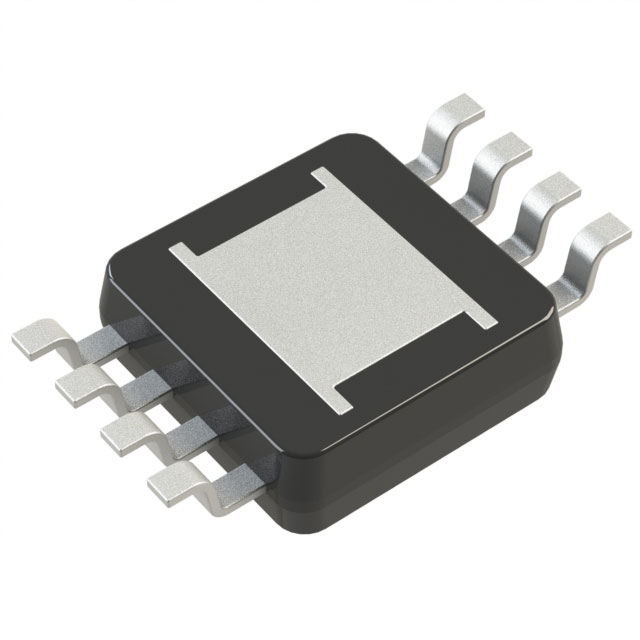

For picture reference, please see the specifications
< >

Commodity Model:LT3085IMS8E

Trade Name:LDO Linear Voltage Regulators

Brand:ADI

Particular Year:25+

Package:MSOP-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3085IMS8E
Package
MSOP-8
Describe
Adjustable 500mA single-resistor low dropout (LDO) voltage regulator

Product Description

The LT3085IMS8E is a 500mA low-dropout linear regulator that can increase output current or dissipate heat on surface mount circuit boards by parallel connection. This new type of voltage regulator is specifically designed to be used as a precise current source and voltage follower, and can be applied in many scenarios that require high current, zero adjustability, and no heat sink. In addition, the LT3085IMS8E also leads out the collector of the transfer transistor to achieve low-dropout (as low as 275mV) operation when used with a second power supply.


The LT3085IMS8E has the following main features:

It is possible to output in parallel to achieve higher power and better heat dissipation

Output current: 500mA

Set the output voltage for a single resistor

An initial accuracy of 1% for the SET pin current

The adjustable output voltage reaches 0V

The current-limiting value remains constant within the temperature range

Low output noise: 40μVRMS (10Hz to 100kHz)

Wide input voltage range: 1.2V to 36V

Low pressure difference: 275mV

Load adjustment rate < 1mV

Linear adjustment rate < 0.001%/V

Minimum load current: 0.5mA

Maintain stability by using the lowest 2.2μF ceramic capacitor

Current-limiting return protection and over-temperature protection

8-pin MSOP package

Passed the AEC-Q100 automotive application certification


Typical applications

High-current full surface mount power supply

High-efficiency linear voltage regulator

A rear voltage regulator for switching power supplies

Low-component-number variable voltage power supply

Low output voltage power supply
