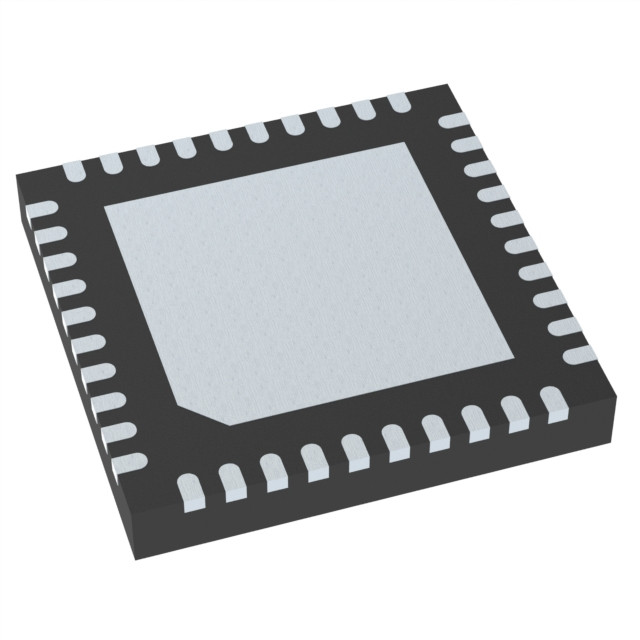

The 5P49V6967A000NDGI is a member of the VersaClock® 6E programmable clock generator series. The 5P49V6967A000NDGI is suitable for high-performance consumer electronics, networking, industrial, computing and data communication applications. The VersaClock 6E programmable clock generator features a flexible power rail, four sets of internal OTP memory, an I2C serial programming interface, and four individually configurable universal output pairs. A single reference clock with one or two redundant clock inputs can generate various frequencies. During normal operation, one of the redundant clocks can be selected by means of the uninterrupted switching function.

The 5P49V6967A000NDGI has the following technical specifications:

Type: Clock generator

PLL: Yes

Input: HCSL, LVCMOS, LVDS, LVPECL, crystal

Output: HCSL, LVCMOS, LVDS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 2:4

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 350MHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 1.8V, 2.5V, 3.3V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 40-VFQFN

Application field

Ethernet switch/router

PCI express 1 - 4

Broadcast video/audio timing

Multifunctional printer

Processor and FPGA clock

Clock conversion of any frequency

Fiber Channel, SAN

Telecommunication line card

Laser distance sensing

Data center
