The RC21213A000GND is a high-performance programmable clock generator specifically designed for automotive applications. The features of this generator include ISO9001 compliance, AEC-Q100 certification, an operating temperature range of -40°C to +105°C (equivalent to Class 2), and PPAP support. These features can achieve high reliability and robustness in automotive environments, meeting strict industry standards, while providing diagnostic functions to enhance performance monitoring.

RC21213A000GND has the following main characteristics:

169fs RMS phase jitter (12kHz to 20MHz, 156.25MHz)

PCIe® Gen6 Common Clock (CC) 27fs RMS

Supports PCIe SRIS and SRNS

Output: 1kHz to 650MHz (differential), 1kHz to 200MHz (single-ended)

LVCMOS, LVDS or low-power HCSL output types are simply AC coupled to LVPECL and CML

LPHCSL integrated terminal

Seven programmable general-purpose input/output (GPIO)

Multiple configurations can be stored in the internal one-time programmable (OTP) memory

1MHzI2C serial port

Operating voltage: 1.8V and/or 3.3V

Eight differences

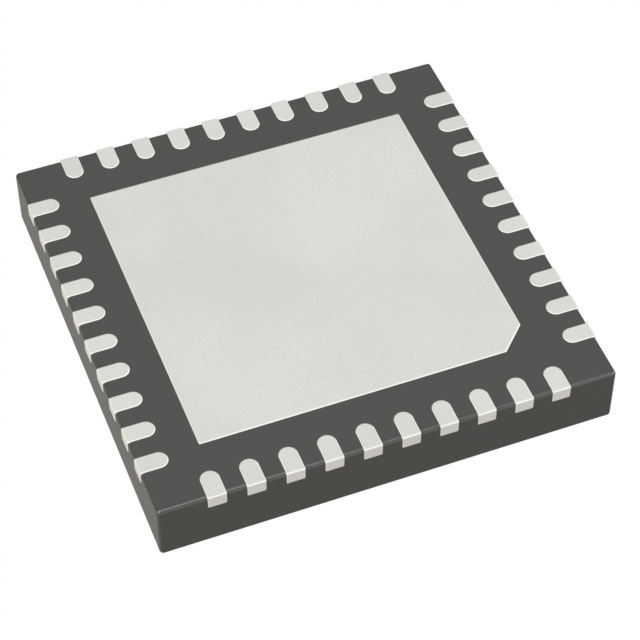

5mm×5mm×0.75mm 40-QFN package

Single crystal

Target application

Infotainment

Approach

Domain controller

Regional controller
