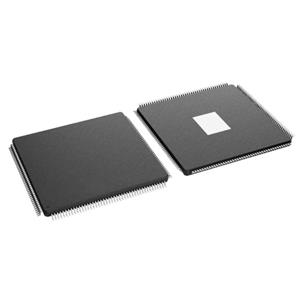

The TMS320F28377DPTPEP is a powerful 32-bit floating-point microcontroller unit (MCU) designed for advanced closed-loop control applications such as industrial drive and servo motor control, solar inverters and converters, digital power, power delivery, and power line communications. The TMS320F28377DPTPEP microcontroller supports the dual-core C28x architecture, thereby significantly enhancing system performance. In addition, integrated analog and control peripherals also enable designers to integrate control architectures and eliminate the need for multi-processors in high-end systems.

Technical specifications

Core: C28x

Program memory size: 1 MB

Data RAM size: 204 kB

Data bus width: 32 bits

ADC resolution: 4 x 12-bit / 16-bit

Maximum clock frequency: 200 MHz

Number of input/output terminals: 97 I/O

Power supply voltage - minimum: 1.14V

Power supply voltage - maximum: 1.26V

Minimum operating temperature: -55 ° C

Maximum operating temperature: + 125 ° C

Packaging/Cabinet: HLQFP-176

Typical applications

• Advanced Driver Assistance Systems (ADAS)

• Building automation

• Electronic point-of-sale terminals

• Electric vehicle/hybrid electric vehicle (EV/HEV) power system

• Factory automation

• Power grid infrastructure

• Industrial transportation

• Medical care, health preservation and fitness

• Motor driver

• Power transmission

• Telecommunications infrastructure
