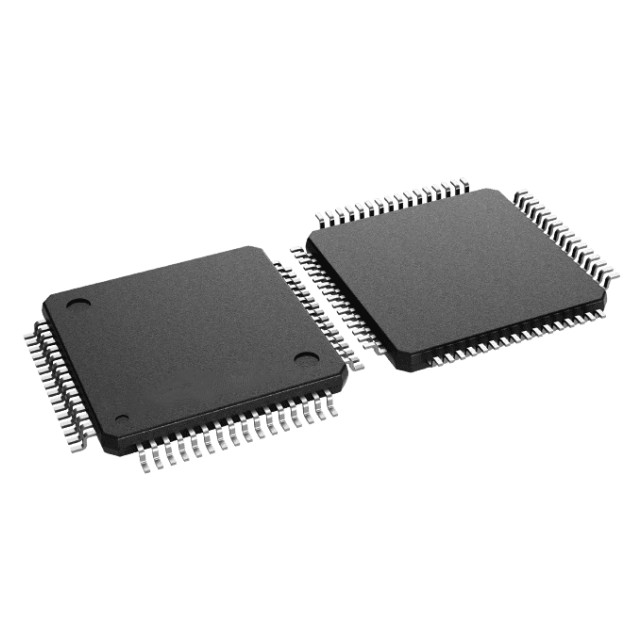

The TMS320F28033P1PAGS is a 32-bit C2000™ MCU launched by (TI), featuring a 60MHz frequency, 64KB flash memory, 4.6MSPS ADC, and CLA characteristics. This microcontroller is mainly optimized for processing, sensing and driving, which can improve the closed-loop performance of real-time control applications (such as industrial motor drivers, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, as well as sensing and signal processing).

The key parameters of TMS320F28033P1PAGS are as follows:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 60MHz

Connection capabilities: CANbus, I2C, LINbus, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 33

Program storage capacity: 64KB (32K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 10K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 14x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device packaging: 64-TQFP (10x10)

Application field

The TMS320F28033P1PAGS microcontroller is widely used in embedded systems that require high-precision control and high-performance computing, such as industrial control, motor drive, power management, etc. Its high integration and powerful processing capabilities make it excel in demanding real-time control applications ‌.
