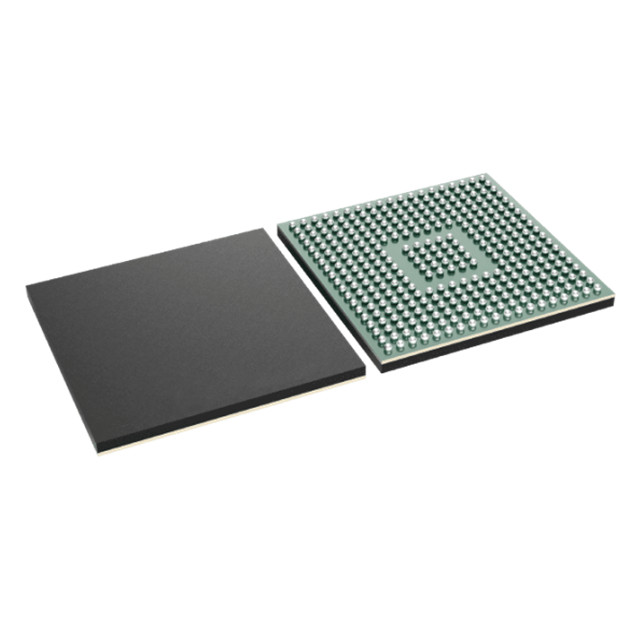

The TMS320F28374SZWTS is a high performance 32-bit microcontroller designed for industrial applications ‌. The microcontroller is equipped with a TMS320C28x series processor, operates up to 200MHz, has an IEEE 754 single-precision floating-point unit (FPU), supports complex mathematical operations such as trigonometric function calculations, and VCU-II provides efficient signal processing and algorithm execution ‌.

The technical parameters of TMS320F28374SZWTS mainly include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 200MHz

Connection capabilities: CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB

Peripheral devices: DMA, POR, PWM, WDT

I/O number: 169

Program storage capacity: 512KB (256K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 66K x 16

Voltage-supply (Vcc/Vdd) : 1.14V to 3.47V

Data converter: A/D 24x12b D/A 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Supplier device packaging: 337-NFBGA (16x16)

The TMS320F28374SZWTS microcontroller integrates a high-performance processor, rich memory options, comprehensive system management and peripheral interfaces. It is suitable for fields such as industrial automation, communication, control and embedded systems that have high requirements for real-time performance and data processing capabilities. With its unique design and features ‌, it can meet a wide range of complex application requirements.
