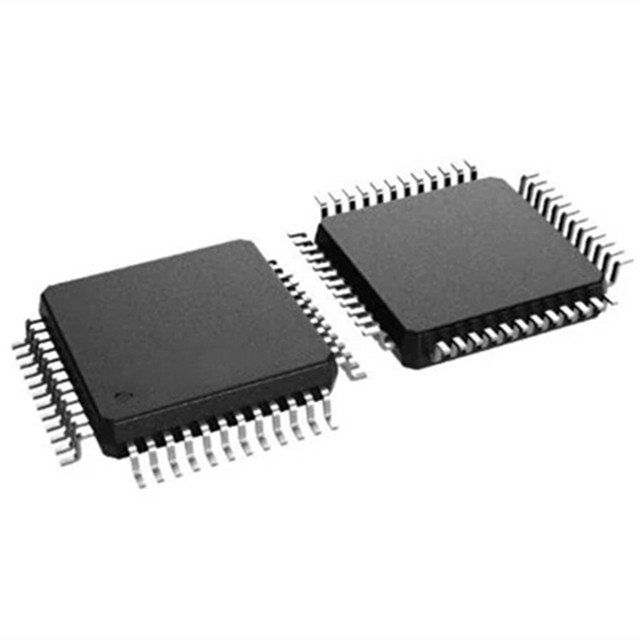

The TMS320F28026FPTT is a C2000™ 32-bit MCU featuring a 60MHz frequency, 32KB flash memory and InstaSPIN-FOC technology. Youdaoplaceholder0 is primarily optimized for processing, sensing and driving to improve closed-loop performance for real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control and sensing and signal processing.

The main specifications of the TMS320F28026FPTT include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 60MHz

Connection capabilities: I2C, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 22

Program storage capacity: 32KB (16K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 6K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 13x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Supplier device packaging: 48-LQFP (7x7)

Typical applications

The TMS320F28026FPTT microcontroller is widely used in embedded systems that require high performance and low power consumption, and is particularly suitable for industrial control, motor control, power management and other applications ‌.
