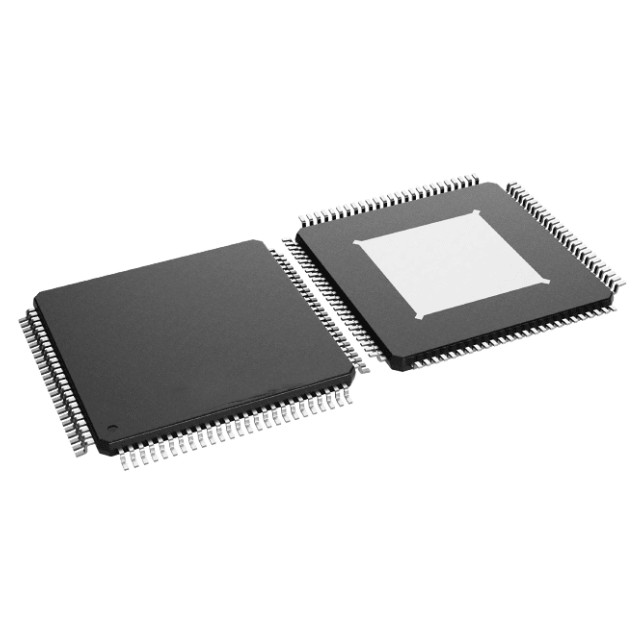

The TMS320F28065PZPS is a 32-bit microcontroller optimized for processing, sensing and driving, belonging to the TI C2000™ series. The MCU is based on the C28x core with a clock speed of up to 90MHz, 128KB of flash memory (64K x 16) and 50KB of data RAM (50K x 16) ‌.

The TMS320F28065PZPS mainly has the following specifications:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 90MHz

Connection capabilities: CANbus, I2C, McBSP, SCI, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 54

Program storage capacity: 128KB (64K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 50K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device packaging: 100-HTQFP (14x14)

Typical applications

The TMS320F28065PZPS microcontroller is suitable for embedded systems that require high-speed processing and multiple communication interfaces, such as industrial control, automotive electronics, consumer electronics and other fields ‌. Its efficient processing capacity and rich interface support enable it to perform well in applications that require real-time data processing and control.
