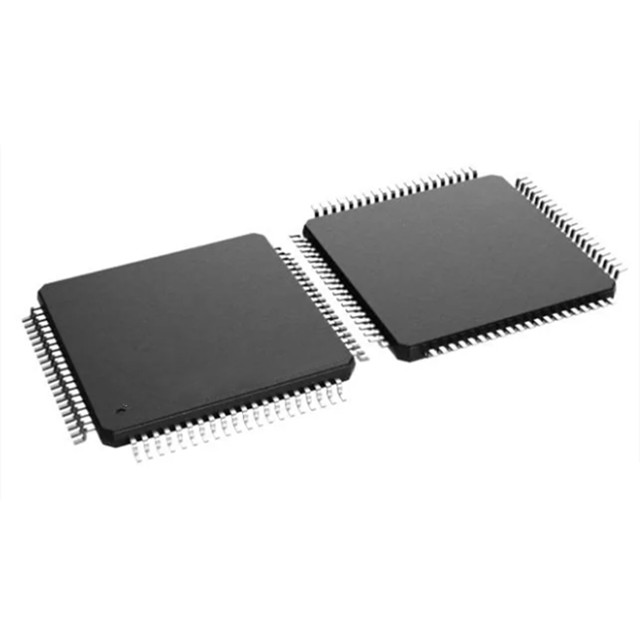

The TMS320F28031PNT is a 32-bit C2000 real-time microcontroller based on the C28x core, operating at a frequency of up to 60MHz, featuring 64KB of flash memory and a 2MSPS ADC (analog-to-digital converter). It supports C/C++ and Assembly language programming, providing efficient code execution capabilities ‌. The main specifications of TMS320F28031PNT are as follows:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 60MHz

Connection capabilities: CANbus, I2C, LINbus, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 45

Program storage capacity: 64KB (32K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 8K x 16

Voltage-supply (Vcc/Vdd) : 1.71V to 1.995V

Data converter: A/D 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Supplier device package: 80-LQFP (12x12)

Typical application fields

The TMS320F28031PNT is suitable for applications that require high-speed computing and control, such as motor control, industrial automation, power electronics, etc. Its high performance and rich peripheral interface make it excel in a variety of control systems ‌.
