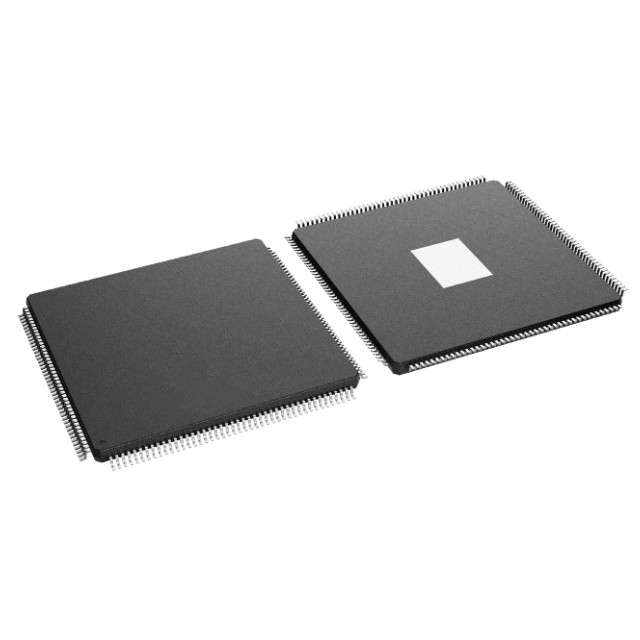

The TMS320F28377SPTPS device is a high-performance 32-bit floating-point microcontroller unit (MCU) from (TI) with processing speeds up to 400MIPS, featuring one CPU and one dual-control law accelerator (CLA), designed for high-precision computing requirements ‌. The technical parameters of TMS320F28377SPTPS mainly include:

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 200MHz

Connection capabilities: CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB

Peripheral devices: DMA, POR, PWM, WDT

I/O number: 97

Program storage capacity: 1MB (512K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 82K x 16

Voltage-supply (Vcc/Vdd) : 1.14V to 3.47V

Data converter: A/D 20x12b, 20x16b; D/A 3x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Supplier device packaging: 176-HLQFP (24x24)

CLA is an independent 32-bit floating-point processor with the same running speed as the main CPU. This CLA responds to peripheral triggers and executes code simultaneously with the main C28x CPU. This parallel processing function can effectively double the computing performance of the real-time control system. By leveraging CLA to serve time-critical functions, the main C28x CPU is free to perform other tasks, such as communication and diagnosis.

The TMS320F28377SPTPS microcontroller is specifically designed for advanced closed-loop control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, as well as induction and signal processing.
