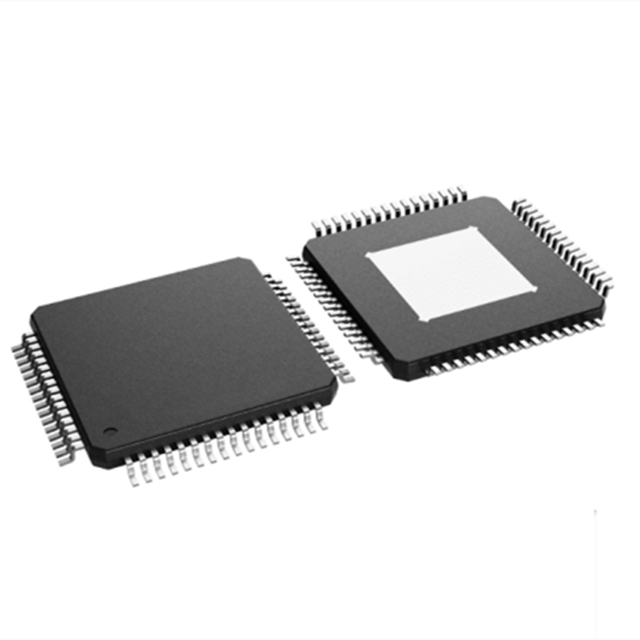

The DP83867IRPAPRG4 device is a robust, low-power, full-function physical layer transceiver that integrates a PMD sub-layer to support 10BASE-Te, 100BASE-TX, and 1000BASE-T Ethernet protocols. The DP83867IRPAPRG4 has been optimized to provide ESD protection, exceeding the 8kV IEC 61000-4-2 standard (direct contact).

Main specifications

Protocol: Ethernet

Function: Physical layer controller

Interface: GMII, MII, RGMII, Serial

Standard: IEEE 802.3, 10/100/1000 Base-T/TX PHY

Voltage - Power supply: 0.95V - 1.155V, 1.045V - 1.89V, 1.71V, 2.375V - 2.625V

Current - Power supply: 141mA (typical value

Operating temperature: -40°C to 85°C

Packaging/Housing: 64-TQFP

The DP83867IRPAPRG4 is designed for the easy implementation of 10/100/1000Mbps Ethernet local area networks. It is directly connected to the twisted-pair medium through an external transformer and directly to the MAC layer via the IEEE 802.3 Gigabit Media-Independent Interface (GMII), IEEE 802.3 Standard Media-Independent Interface (MII), or the downsized GMII (RGMII). QFP packaging supports GMII/MII/RGMII, while QFN packaging supports RGMII.

Application scenarios

Motor driver

Industrial factory automation

Support fieldbus

Industrial embedded computing

Wired and wireless communication infrastructure

Testing and Measurement

Consumer electronic products
