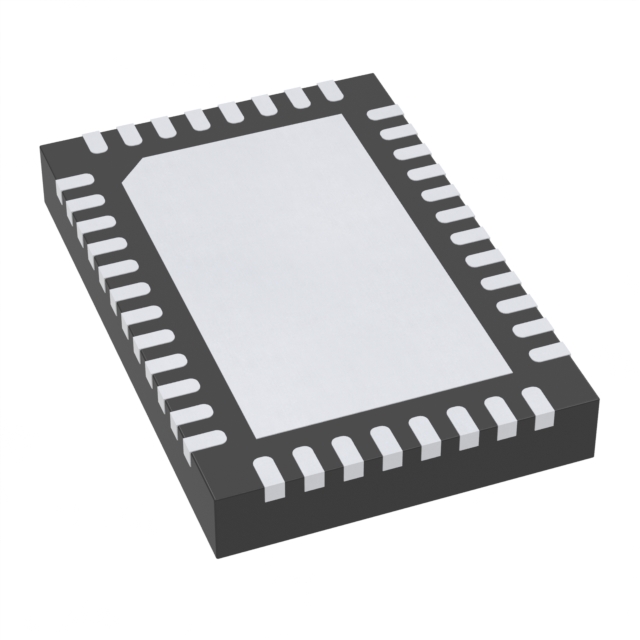

For picture reference, please see the specifications
< >

Commodity Model:TDP2044RNQR

Trade Name:Interface - Signal Buffers, Repeaters

Brand:TI

Particular Year:25+

Package:WQFN-40

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TDP2044RNQR
Package
WQFN-40
Describe
Four-Channel 20Gbps DisplayPort 2.1 Linear Redriver with Cross-Point for USB Type-C

Product Description

TDP2044RNQR is a four-channel low-power high-performance linear repeater or redriver with integrated cross-point to support VESA USB Type-C™ Alt Mode applications designed to support DisplayPort 2.1 up to 20Gbps.


Feature Of TDP2044RNQR

Supports DisplayPort 2.1 up to 20Gbps (UHBR20)

Designed for USB-C DP only (no USB 3.x) source or sink with integrated cross-point mux

Protocol agnostic linear equalizer supporting most AC coupled interfaces up to 20Gbps

Excellent electrical performance at 20Gbps (10GHz Nyquist):

19dB equalization

1.8V DC linearity, 1.08V AC linearity

–15 / –16dB Rx / Tx return loss

–60dB NEXT, –43dB FEXT cross talk

70fs low additive RJ with PRBS data

Transparent to DisplayPort 1.4 and 2.1 link training

Single 3.3V supply with 160mW/chan active power

Internal voltage regulator provides immunity to supply noise

High linearity easing DP compliance ratio tests

High BW resulting excellent linear EQ curves

Pin-strap, I2C or EEPROM programming

18 EQ boost and 5 flat gain settings

TDP2044: 0°C to 70°C commercial temperature

TDP2044I: –40°C to 85°C industrial temperature

4mm × 6mm, 40 pin WQFN package


Applications Of TDP2044RNQR

Desktop PC or motherboard

PC, notebooks, and tablets

Docking stations

TV, gaming, home theater, and entertainment

Pro audio, video, and signage

Test and measurement

Medical

Flat panel monitors
