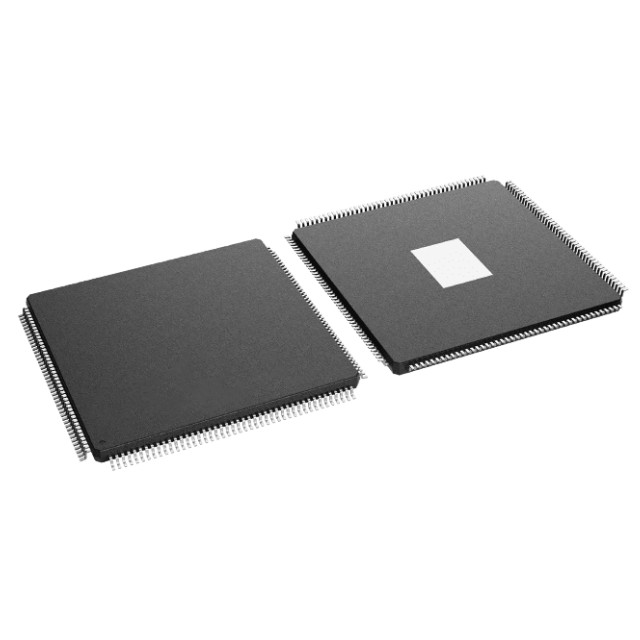

The F28P650SK7PTP is a 32-bit C2000 microcontroller with 1xC28x and 1xCLA cpus at 200MHz with processing power of 400MIPS (millions of instructions per second) ‌. The microcontroller has 1.28MB of flash memory and 244KB of RAM‌ with built-in 16-bit ADC, supports 16-bit and 12-bit resolutions, and has a total of 24, 34, 36 or 40 ADC channels ‌.

The main specifications of F28P650SK7PTP include:

Core processor: C28x

Kernel specification: 32- bits

Speed: 200MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 106

Program storage capacity: 1.28MB (1.28M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 244K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 36x12/16b SAR D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device packaging: 176-HLQFP (24x24)

Youdaoplaceholder0 Application fields ‌

The F28P650SK7PTP is widely used in industrial and automotive fields and is particularly suitable for power electronics digital control solutions such as solar, energy storage, electric vehicle charging stations, robotics and motor drives ‌.
