The F280049RSHSR is a powerful 32-bit floating-point microcontroller unit (MCU) that enables designers to integrate critical control peripherals, differential analog, and non-volatile memory on a single device. The F280049RSHSR microcontroller is optimized for processing, sensing and driving, aiming to enhance the closed-loop performance of real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, electric vehicles and transportation, motor control, as well as sensing and signal processing.

Technical Specification

Core processor: C28x

Kernel specification: 32-bit single-core

Speed: 100MHz

Connection capabilities: CANbus, I2C, LINbus, SCI, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 25

Program storage capacity: 256KB (128K x 16)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 50K x 16

Voltage-supply (Vcc/Vdd) : 1.14V to 1.32V

Data converter: A/D 12x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

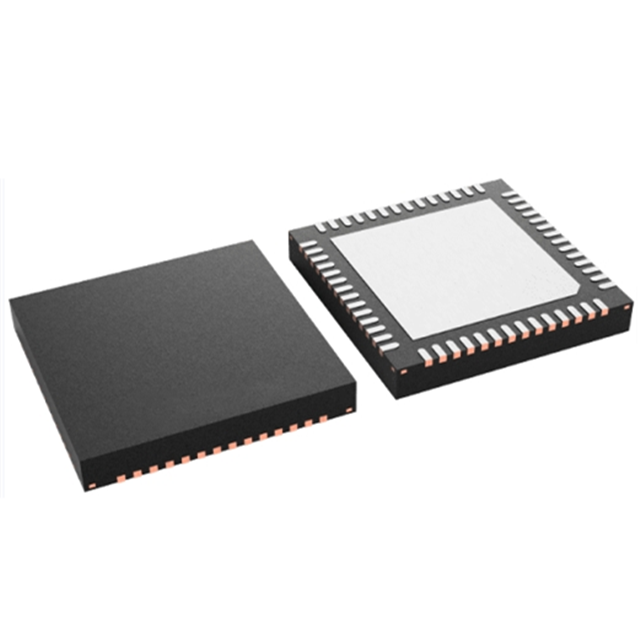

Supplier device packaging: 56-VQFN (7x7)

Application field

The F280049RSHSR microcontroller is widely used in application scenarios that require high-precision computing and control, such as industrial control, motor drive, power electronics, and automation systems. Its high computing power and rich peripheral interface make it excel in demanding industrial Settings ‌.
