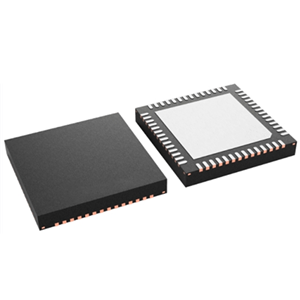

The F28P550SG9RSHR is a 32-bit microcontroller launched by (TI) and belongs to the C2000™ series. The microcontroller has a 150MHz C28x 32-bit DSP CPU equivalent to the real-time signal chain performance of a 300MHz Arm® Cortex® -M7-based device ‌ with the following technical parameters:

Core processor: C28x

Kernel specification: 32- bits

Speed: 150MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 15

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: -

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 26x12b SAR D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device packaging: 56-VQFN (7x7)

Application scenarios

The F28P550SG9RSHR is suitable for application scenarios that require high real-time processing capabilities and complex mathematical operations, such as industrial control, motor drive, power electronics and other fields. Its high performance and rich functionality make it excel in systems that require high precision control ‌.

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
