The F28P550SG8RSHR is an expandable, ultra-low latency device in the C2000™ real-time microcontroller series, designed to enhance the efficiency of power electronic equipment, including but not limited to: high power density, high switching frequency, and support for the use of GaN and SiC technologies.

These applications include:

Motor driver

Electrical appliances

Hybrid, electric and powertrain systems

Solar energy and electric vehicle charging

Digital power supply

Vehicle body electronic devices and lighting

Testing and Measurement

The F28P550SG8RSHR microcontroller is based on TI's 32-bit C28x DSP core and can provide 150MHz signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. The Floating-point Unit (FPU), Trigonometric Function Accelerator (TMU), and VCRC (Cyclic Redundancy Check) extended instruction sets further enhance the performance of the C28x CPU, thereby accelerating the speed of key and commonly used algorithms in real-time control systems.

Technical Specification

Core processor: C28x

Kernel specification: 32- bits

Speed: 150MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART, USB

Peripherals: AES, Power Failure detection/reset, DMA, POR, PWM, WDT

I/O number: 15

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: -

Voltage - Power Supply (Vcc/Vdd) : 2.8V - 3.63V

Data converter: A/D 26x12b SAR D/A 1x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

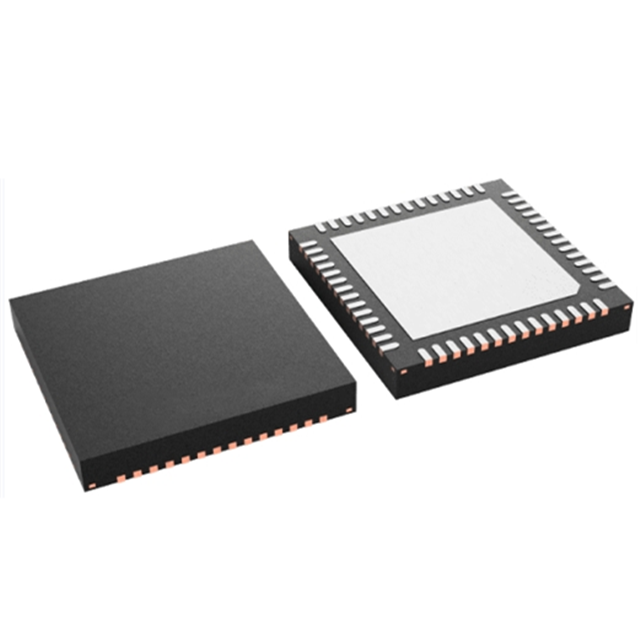

Supplier device packaging: 56-VQFN (7x7)
