The F28M36P53C2ZWTS is a 32-bit, dual-core C2000 real-time microcontroller with 275MIPS, 1024KB flash memory, ENET, and USB. It belongs to the Concerto MCU family. It combines C28x core and ARM Cortex-M3 core. It aims to provide real-time control and advanced connection functions.

The F28M36P53C2ZWTS microcontroller has a main frequency of up to 150 MHZ, up to 1MB of flash memory and 232KB of RAM, and supports dynamic phase-locked loop (PLL) ratio changes to ensure system flexibility and stability ‌.

Technical Specification

Core processor: C28x/ARM® Cortex®-M3

Kernel specification: 32-bit dual-core

Speed: 125MHz/150MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 142

Program storage capacity: 512KB/512KB

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 232KB

Voltage-supply (Vcc/Vdd) : 1.14V to 3.63V

Data converter: A/D 24x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

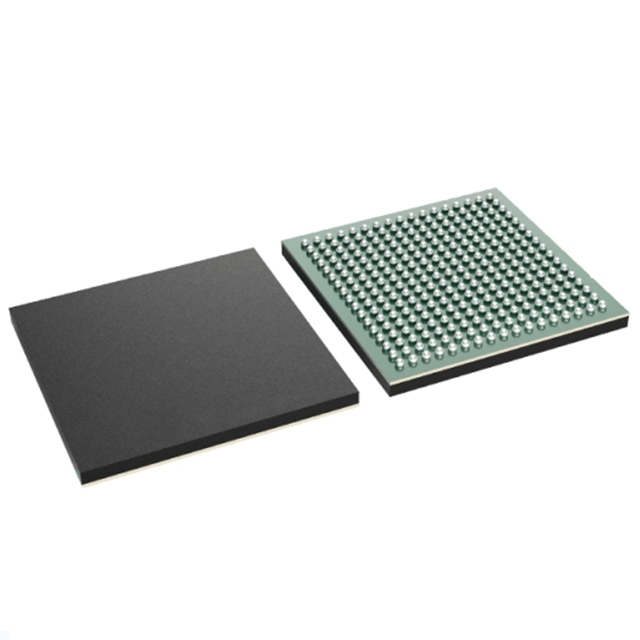

Supplier device package: 289-NFBGA (16x16)

Application scenarios

The F28M36P53C2ZWTS microcontroller is widely used in green and environmentally friendly applications such as smart motor control, renewable energy, smart grids, digital power supplies and electric vehicles. Its high performance and rich peripheral interface make it excel in these areas, enabling efficient control and communication ‌.
