The F28M35M52C1RFPT is a multi-core system-on-chip microcontroller unit (MCU), which features independent communication and real-time control subsystems. The F28M35M52C1RFPT device is one of the series of Concerto products. This device has the following main specifications:

Core processor: C28x/ARM® Cortex®-M3

Kernel specification: 32-bit dual-core

Speed: 75MHz/75MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, SCI, SPI, SSI, UART/USART, USB, USB OTG

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 74

Program storage capacity: 512KB/512KB

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 136KB

Voltage - Power Supply (Vcc/Vdd) : 1.2V, 1.8V, 3.3V

Data converter: A/D 20x12b

Oscillator type: -

Operating temperature: -40°C to 105°C (TJ)

Installation type: Surface mount type

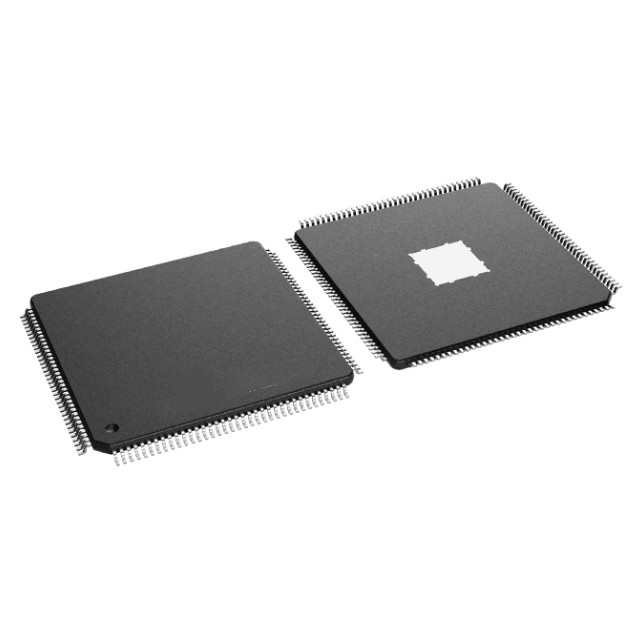

Supplier device package: 144-HTQFP (20x20)

Application field

The F28M35M52C1RFPT is suitable for industrial control, automotive electronics, smart home and other fields that require high-performance computing and multiple communication interfaces. Its high integration and rich peripheral interfaces enable it to perform well in systems that require high-precision control.
