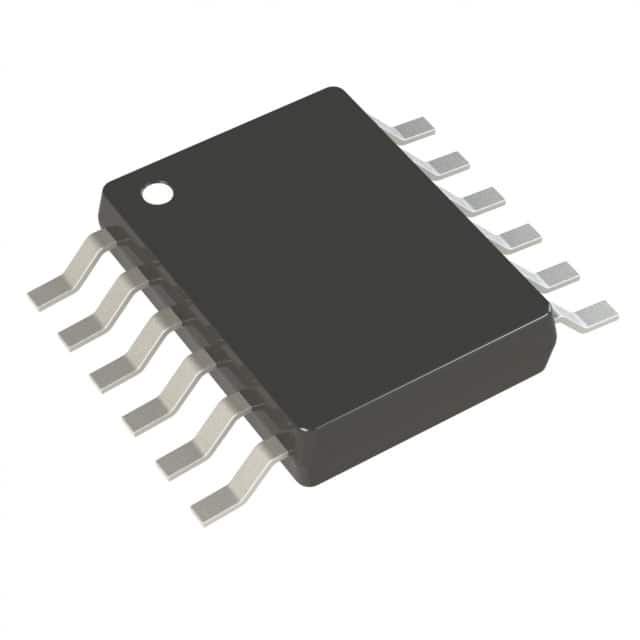

The LT3045EMSE is a high-performance low-dropout linear regulator that adopts LTC's ultra-low noise and ultra-high PSRR architecture to power noise-sensitive applications. The LT3045EMSE is designed as a precision current reference voltage source for connecting high-performance voltage buffers at the back end. It can be easily connected in parallel to further reduce noise, increase output current and dissipate heat on the PCB.

This device provides a current of 500mA under a typical pressure difference of 260mV. The nominal working static current is 2.2mA, and it drops to <<1µA when turned off. The LT3045EMSE features a wide output voltage range (0V to 15V) while maintaining unit gain operation, providing almost constant output noise, PSRR, bandwidth and load regulation performance, unaffected by the programmed output voltage.

Technical Specification

Product: LT3045EMSE

Output configuration: Positive

Output type: Adjustable

Voltage stabilizer number: 1

Voltage - Input (maximum value) : 20V

Voltage - Output (minimum/Fixed) : 0V

Voltage - Output (maximum value) : 15V

Voltage drop (maximum value) : 0.45V @ 500mA

Current - Output: 500mA

Current-static (Iq) : 20 µA

Current - Power supply (maximum value) : 25 mA

PSRR: 117dB to 53dB (120Hz to 10MHz)

Control characteristics: Enabled, good power supply, soft start

Protection functions: Overcurrent, over-temperature, reverse polarity, undervoltage lock (UVLO)

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Package/Shell: 12-TSSOP

Target application

RF power supply: PLL, VCO, mixer, LNA, PA

Extremely low-noise instruments and meters

High-speed/high-precision data converter

Medical applications: Imaging, diagnosis

Precision power supply

A post-regulator for switching power supplies
