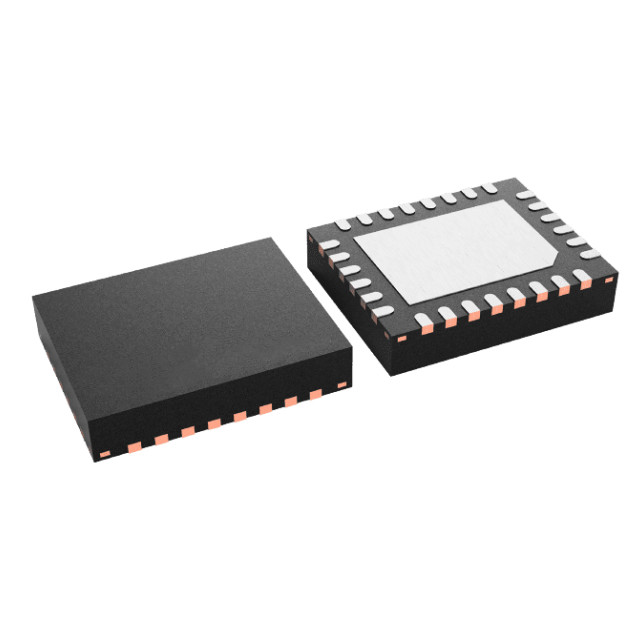

The LMH32404QWRHFRQ1 is a four-channel, single-ended input-to-differential output transimpetry amplifier (TIA), suitable for light detection and ranging (LIDAR) applications and laser ranging systems. Its main features include:

• Comply with the EC-Q100 standard for automotive applications:

-Temperature grade 1: -40 °C to +125°C, TA

• Gain: 20kΩ

• Performance, CPD = 1pF:

-Bandwidth: 350 MHz

- Input reference noise: 56nARMS

- Rise and fall time: 1.25ns

• Static current: 28 mA per channel

• Standby mode: 10 mA/ channel

• Low power mode: 2.5mA (4 channels)

• Channel switching time: 10ns

• Integrated ambient light cancellation

• Integrated 100mA protection clamp

• 4 input channels and 4 differential output channels

• Integrated multiplexers enable flexible configuration between optical sensors and ADC/TDC

• Multiple LMH32404s can be combined in parallel to achieve a wider FoV

The LMH32404QWRHFRQ1 integrates a 100mA clamp on each channel, which can provide protection for the amplifier and allow the device to quickly recover from overload input conditions. In addition, the LMH32404QWRHFRQ1 also provides an integrated ambient light elimination (ALC) circuit on each channel, which can replace the AC coupling between the photodiode and the amplifier, thereby saving board layout space and system costs. When measuring direct current and low frequencies, ALC circuits should be prohibited.

The application of LMH32404QWRHFRQ1

• Mechanically scanned lidar

• Solid-state scanning lidar

• Laser range finder

• Safety area scanner
