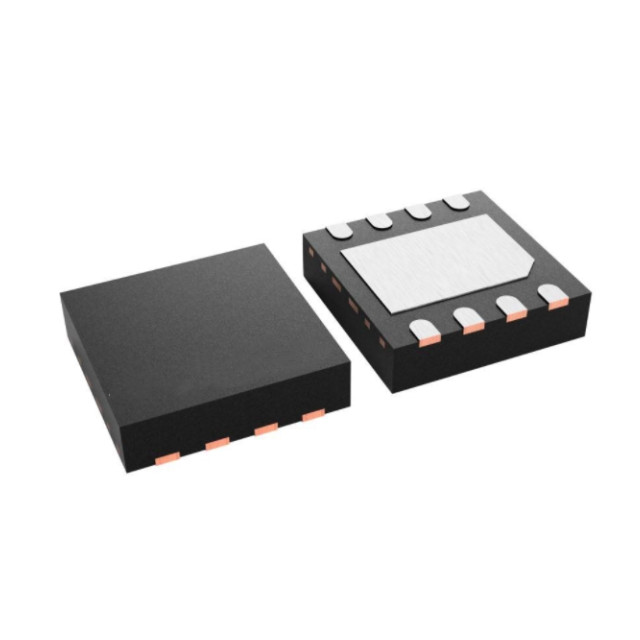

The OPA855QDSGRQ1 is a wideband low-noise operational amplifier with bipolar input, suitable for wideband transimpew and voltage amplifier applications. When this device is configured as a transresistive amplifier (TIA), the 8GHz gain-bandwidth product (GBWP) can achieve a high closed-loop bandwidth with a transresistive gain of up to tens of kilohms.

Technical Specification

Amplifier type: Standard

Number of circuits: 1

Output type: Full swing

Pressure swing rate: 2750 V/µs

Gain-bandwidth product: 8 GHz

-3db bandwidth: 2.5 GHz

Current - Input bias: 12 µA

Voltage - Input compensation: 200 µV

Current - Power supply: 17.8mA

Current - Output/Channel: 105 mA

Voltage - Span (minimum) : 3.3V

Voltage - Span (maximum value) : 5.25V

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Package/Housing: 8-WFDFN

Target application

OPA855QDSGRQ1 is mainly applied in the following fields:

Automotive lidar

Time-of-flight (ToF) camera

Optical Time Domain Reflectometer (OTDR

3D scanner

Laser ranging

Solid-state scanning lidar

Optical ToF position sensor

Unmanned aerial vehicle vision

Silicon photomultiplier (SiPM) buffer amplifier

Post-amplifier of photomultiplier tube
