The TLV3602DGKR is a 325MHz high-speed comparator with rail-to-rail input and a propagation delay of 2.5ns. This comparator can respond quickly and has a wide operating voltage range, making it highly suitable for narrow signal pulse detection and data and clock recovery applications in lidar, rangefinders and line receivers.

Compared with the alternative high-speed differential output comparator, the push-pull (single-ended) output of the TLV3602DGKR comparator can simplify the board-to-board wiring of the I/O interface and save related costs, while also reducing power consumption. They can be directly connected to most of the current digital controllers and IO extenders in the downstream circuits.

Main specifications

Type: General

Number of components: 2

Output type: Push-pull type, CMOS, rail-to-rail

Voltage - Power supply, single/double (±) : 2.4V to 5.5V

Voltage - Input compensation (maximum value) : 5mV

Current - Input bias (maximum value) : 5µA

Current - Output (typical value) : 30mA

Current - Static (maximum value) : 7mA

CMRR, PSRR (typical values) : 80dB CMRR, 80dB PSRR

Propagation delay (maximum value) : 3.5ns

Lag: 5mV

Operating temperature: -40°C to 125°C (TA)

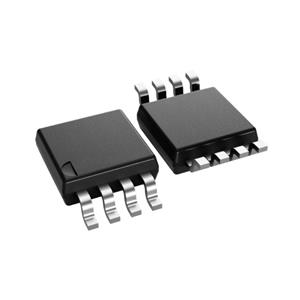

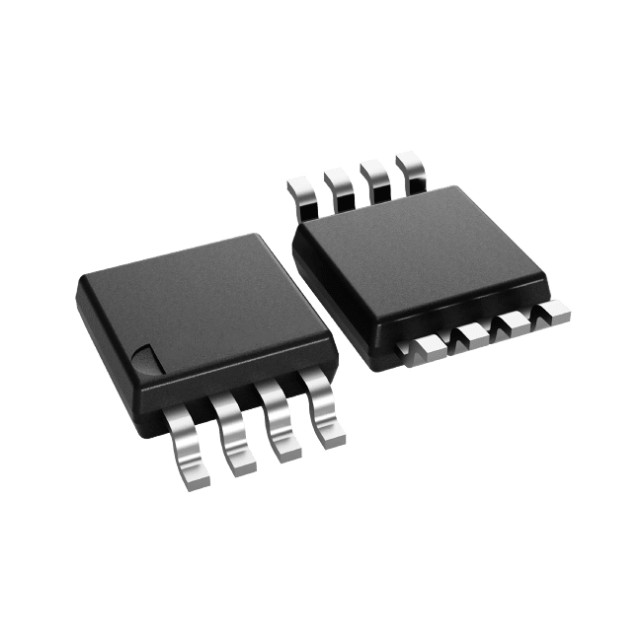

Encapsulation/Shell: 8-VSSOP

Installation type: Surface mount type

Target application

Laser rangefinder

Clock and data recovery

High-speed trigger function in oscilloscopes and logic analyzers

Distance sensing in lidar

"Drone vision"

High-speed differential line receiver
