The LTC6752IUD-3 is a very high-speed comparator that can support a switching rate of up to 280MHz. This comparator features a low propagation delay of 2.9ns and a fast rise/fall time of 1.2ns. The LTC6752IUD-3 device features rail-to-rail input and can operate on 2.45V (up to 3.5V or 5.25V, depending on the option). The output is CMOS type, and the separated power supply option can operate at as low as 1.71V voltage, thus allowing direct connection to 1.8V logic devices.

Performance parameters

Type: General

Number of elements: 1

Output type: CMOS

Voltage - power supply, single/dual (±) : 2.45V to 5.25V

Voltage-input compensation (maximum value) : 5.5mV @ 5V

Current - Input bias (maximum) : 1.6µA @ 5V

Current - output (typical value) : 19mA @ 5V

Current - static (maximum value) : 2.65mA

CMRR, PSRR (typical values) : -

Propagation delay (maximum) : 5.3ns

Lag: -

Operating temperature: -40°C to 85°C

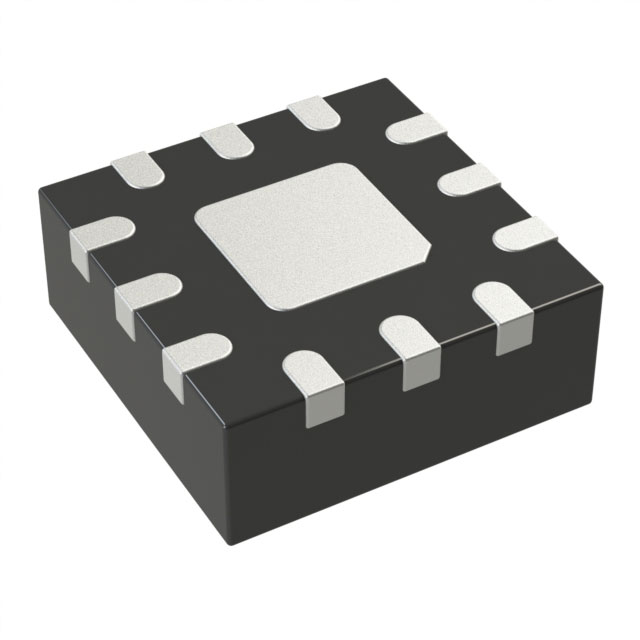

Package/Housing: 12-QFN

Installation type: Surface mount type

Typical applications

Clock and data recovery

Level shift

High-speed data acquisition system

Window comparator

High-speed line receiver

Fast crystal oscillator

Flight time measurement

Time domain reflectometer
