The NCV78902DE0R2G is a two-phase boost LED driver specifically designed for automotive front lighting systems, supporting applications such as high beams, low beams, daytime running lights (DRL), turn signal lights, and fog lights. The NCV78902DE0R2G driver is designed to support high-current leds and can be used in conjunction with step-down LED drivers such as the NCV78935 (three-channel step-down) or NCV78925 (dual-channel step-down) to provide a complete multi-channel lighting solution. The NCV78902DE0R2G supports multi-phase operation (up to 4 phases), which can optimize filtering and save component size costs.

Core parameters

Type: DC DC controller

Topology: SEPIC, boost voltage

Internal switch: None

Output number: 1

Voltage - Power supply (minimum) : 3V, 4.5V

Voltage - Power supply (maximum) : 5.5V

Voltage - Output: 60V

Current - Output/Channel: -

Frequency: 125 KHZ to 1MHz

Dimming: PWM

Application: Lighting

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

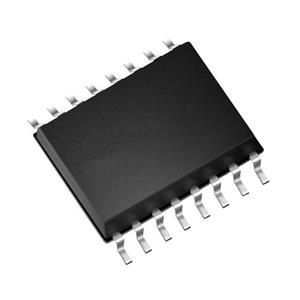

Packaging/Housing: 16-TSSOP

Application field

High beams and low beams

Steering indicator and DRL

Position light or parking light

Fog lights and static turn signals

Adaptive beam adjustment

Pixel application
