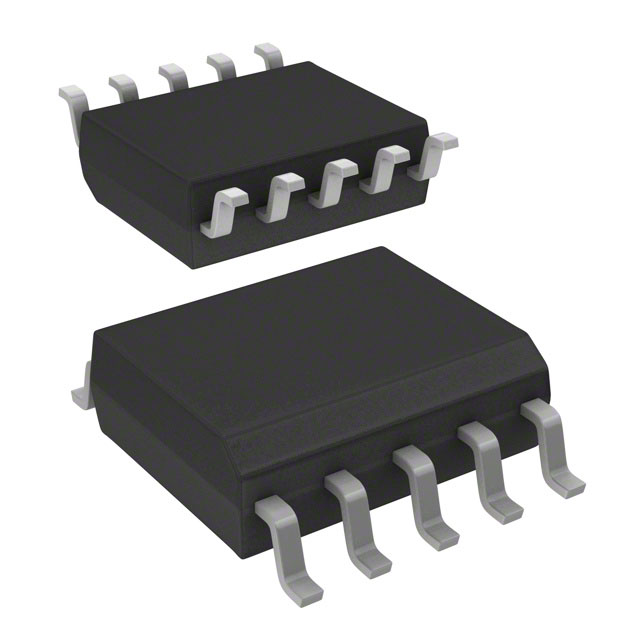

For picture reference, please see the specifications
< >

Commodity Model:IW9802-36

Trade Name:AC-DC converter

Brand:Renesas

Particular Year:25+

Package:SOIC-10

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
IW9802-36
Package
SOIC-10
Describe
100W digital zero-voltage switch RapidCharge™ AC/DC controller

Product Description

The IW9802-36 device is a 100W digital zero-voltage switch RapidCharge™ AC/DC controller launched by (Renesas), mainly applied in the field of high-efficiency power supply design. The IW9802-36 adopts its patented adaptive zero-voltage switching technology to achieve an ultra-small and lightweight power supply design, suitable for AC power supply equipment. It operates at high switching frequencies and can significantly reduce the volume of transformers and passive components. Supports fixed voltage/adjustable output power supply design and can be used in conjunction with industry-standard controllers such as TL431. ‌


Characteristics

High switching frequency

Lighter and smaller transformers

Passive components are smaller and easier to control EMI

The patented adaptive ZVS control enables high efficiency and low EMI

Efficiently recover energy and minimize heat generation to the greatest extent

The efficiency is as high as 94%

User-configurable ZVS timing can optimize the performance of MOSFETs of different powers

Adaptive seamless multi-mode control (MMC) can enhance efficiency and eliminate audible noise

Ac plug and pull detection and X-cap discharge


Protective function

IW9802-36 provides primary side overvoltage and overcurrent protection circuits to prevent safety hazards caused by the failure of secondary side protection. Built-in current and voltage protection mechanisms enhance the reliability of the power supply system. ‌


Application field

The IW9802-36 is suitable for applications such as RapidCharge fast charging power sources and industrial equipment power supplies that require high-efficiency and high-precision control.
