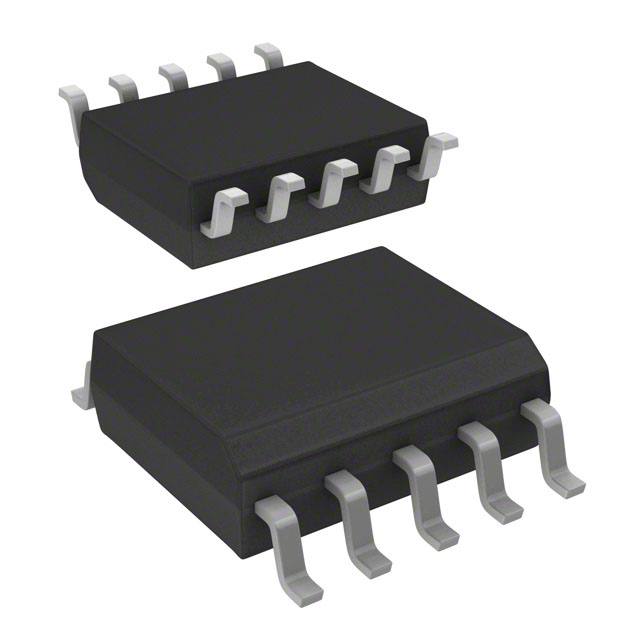

For picture reference, please see the specifications
< >

Commodity Model:IW9802-37

Trade Name:AC-DC converter

Brand:Renesas

Particular Year:25+

Package:SOIC-10

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
IW9802-37
Package
SOIC-10
Describe
100W digital zero-voltage switch RapidCharge™ AC/DC controller

Product Description

The IW9802-37 digital AC/DC controller integrates Renesas Electronics' patented Adaptive zero-voltage switching (ZVS) technology, providing an ultra-small, lightweight, low-cost and portable power supply for any AC-powered product. Its main features include:

High switching frequency

Lighter and smaller transformers

Passive components are smaller and easier to control EMI

The patented adaptive ZVS control enables high efficiency and low EMI

Efficiently recover energy and minimize heat generation to the greatest extent

The efficiency is as high as 94%

User-configurable ZVS timing can optimize the performance of MOSFETs of different powers

Adaptive seamless multi-mode control (MMC) can enhance efficiency and eliminate audible noise

Ac plug and pull detection and X-cap discharge


This device operates at high switching frequencies, significantly reducing the size of transformers and passive components. The IW9802-37 can be used in conjunction with various third-party controllers, including the industry-standard programmable benchmark (TL431), to provide fixed-voltage or adjustable output power for RapidCharge applications.


In addition, IW9802-37 can provide adequate protection for the following aspects:

Overvoltage (OVP

Overcurrent (OCP

Users can configure over-temperature

"Breakdown"

Overvoltage protection/undervoltage protection

V-induced/I-induced short circuit

Output short circuit

Additional primary side overcurrent protection (OCP) and overvoltage protection (OVP) (in case the optocoupler fails)


Typical applications

The IW9802-37 is suitable for applications such as RapidCharge fast charging power sources and industrial equipment power supplies that require high-efficiency and high-precision control.
