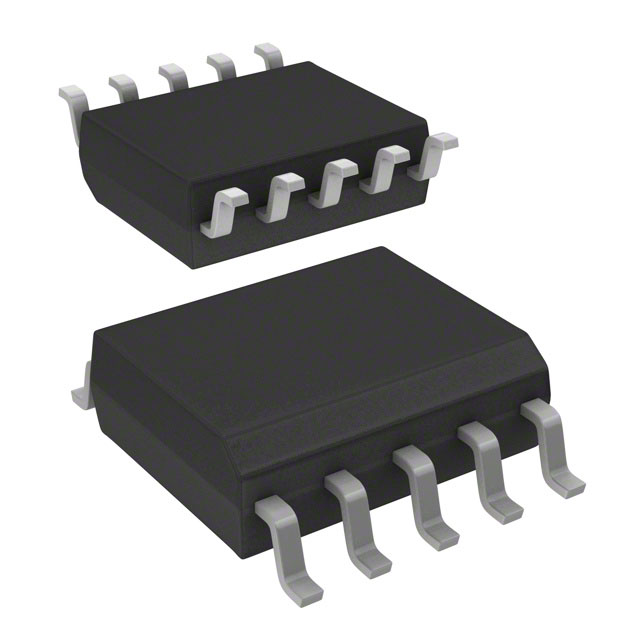

For picture reference, please see the specifications
< >

Commodity Model:IW9802-23

Trade Name:AC-DC converter

Brand:Renesas

Particular Year:25+

Package:SOIC-10

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
IW9802-23
Package
SOIC-10
Describe
100W digital zero-voltage switch RapidCharge™ AC/DC controller

Product Description

The IW9802-23 is a 100W digital zero-voltage switch RapidCharge™ AC/DC controller produced by Renesas, mainly applied in the field of high-efficiency power management. The following are its core parameters:

Output isolation: Isolation

Internal switch: None

Voltage - Breakdown: -

Topology: Flyback

Voltage - Power Supply (Vcc/Vdd) : 45V

Duty cycle: -

Frequency - Switch: -

Power (W) : 66 W

Fault protection: Current limiting, over-temperature, over-voltage, short circuit

Control characteristics: -

Operating temperature: -40°C to 150°C (TJ)

Packaging: 10-SOIC


The IW9802-23 operates at high switching frequencies, significantly reducing the size of transformers and passive components. It can be used in conjunction with various third-party controllers, including the industry-standard programmable benchmark (TL431), to provide fixed-voltage or adjustable output power for RapidCharge applications.


The IW9802-23 offers high efficiency, high voltage and current control accuracy. This device provides advanced protection functions for current and voltage protection, including primary side control overvoltage and overcurrent protection circuits to prevent secondary side protection function failure, thus making the power supply using iW9802 more reliable.


Application scenarios

IW9802-23 is suitable for consumer electronic devices that require high-efficiency and highly integrated power solutions, such as portable devices, industrial control and other fields.
