The SLG7MD47673V is a compact and efficient integrated H-bridge/half-bridge driver, specifically designed for wide voltage applications with up to 26.4V and 3A (maximum) output. The SLG7MD47673V is highly suitable for applications where both power and size are crucial. It integrates the NMOS FET into the HV OUT CTRL macro cell, allowing for detailed configuration Settings. The following are its core features:

Two high-voltage and high-current drives the GPO

The current of each GPO/H bridge is up to 1.5A RMS

Low power consumption

Lead-free/Compliant with RoHS standards

Halogen-free

STQFN-20 package

In addition, the SLG7MD47673V features an EN input interface for precise motor start control and activates a low-power sleep mode through the INH pin to reduce power consumption. The SLG7MD47673V also features built-in protection functions such as undervoltage locking, overcurrent protection and thermal shutdown, ensuring reliable and safe operation in various environments.

Technical specifications

Motor type - Stepper: -

Motor type - AC, DC: brushed DC

Function: Driver - fully integrated, control and power stage

Output configuration: Full bridge

Interface: Parallel, PWM

Technology: Power MOSFET

Step resolution: -

Application: PWM motor driver

Current - output: 6A

Voltage - Power supply: 2.3V to 5.5V

Voltage - Load: 4.5V to 26.4V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

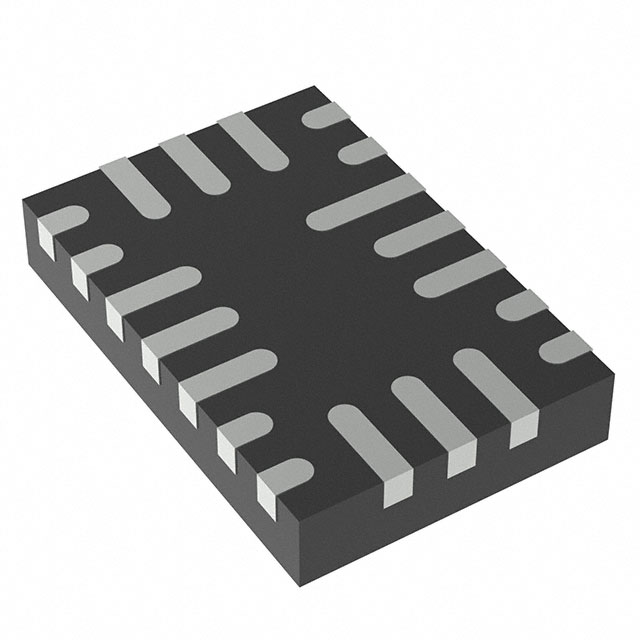

Package: 20-STQFN (2x3)

Applications

Brushed DC motor

Solenoid valve

Gasket

Drying machine

Dishwasher

Smart electricity meter

Robot

Infusion pump

Blood pressure monitor

Beauty and beauty care

Motor control
