The LTC2376CDE-16 analog-to-digital converter is a low-noise, low-power, high-speed 16-bit, 250ksps, successive approximation register (SAR) ADC produced by Analog Devices (ADI). It operates under a 2.5V power supply and features a ±VREF full differential input range, with the variation range of VREF from 2.5V to 5.1V.

The LTC2376CDE-16 features a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic. It also has a unique Digital Gain Compression (DGC) function, thus eliminating the negative power supply of the driver amplifier and maintaining the full resolution of the ADC.

Technical parameters

The key parameters of LTC2376CDE-16 are as follows:

Number of digits: 16

Sampling rate (per second) : 250k

Input number: 1

Input type: Differential

Data interface: SPI

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference type: External

Voltage - Power supply, simulation: 2.375V to 2.625V

Voltage - Power supply, figures: 2.375V to 2.625V

Feature: -

Operating temperature: 0°C to 70°C

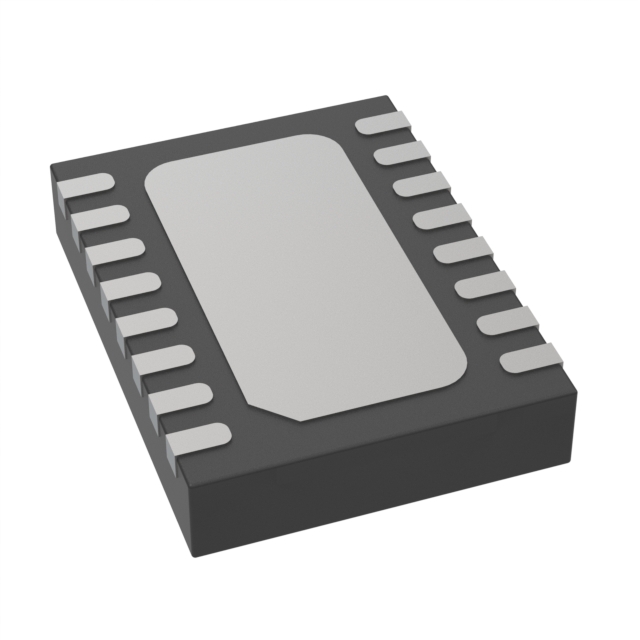

Package/Housing: 16-DFN

Installation type: Surface mount type

Furthermore, due to its characteristics of low power consumption and high speed, the LTC2376CDE-16 is highly suitable for various high-speed applications, mainly including:

Medical imaging

High-speed data acquisition

Portable or compact instruments

Industrial process control

Low-power battery-powered instrument

ATE (Automatic Test Equipment)
