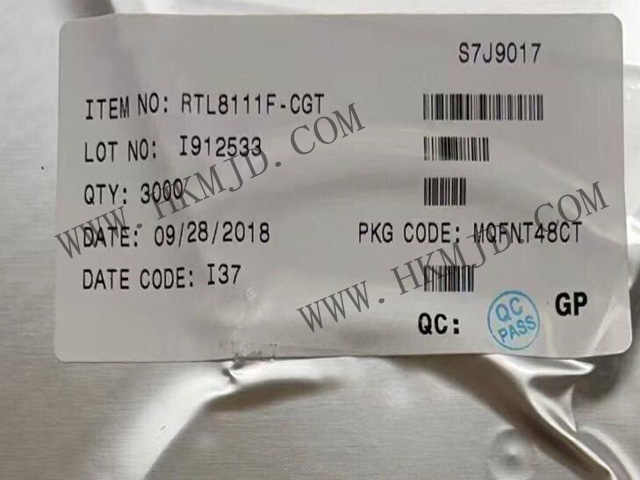

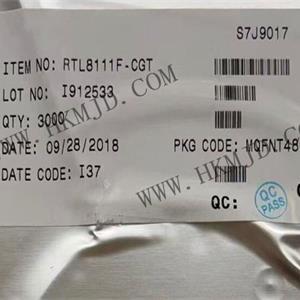

For picture reference, please see the specifications
< >

Commodity Model:RTL8111F-CGT

Trade Name:Ethernet Controller

Brand:REALTEK

Particular Year:18+

Package:QFN48

Delivery Date:New and Original

Stock: 2811pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
REALTEK
Model
RTL8111F-CGT
Package
QFN48
Describe
High-performance Gigabit Ethernet controller

Product Description

The RTL8111F-CGT is a highly integrated Gigabit Ethernet controller chip from Realtek, specifically designed for PCI Express interfaces, and is suitable for network connectivity requirements in motherboards, laptops, servers, and embedded systems.


RTL8111F-CGT Core Features

Triple-speed Ethernet support:

Compliant with IEEE 802.3 (10Mbps), IEEE 802.3u (100Mbps), and IEEE 802.3ab (1000Mbps) standards.

Supports CAT 5 UTP cable (Gigabit) and CAT 3 UTP cable (10Mbps).

PCI Express 1.1 Interface:

Features a single-channel 2.5 Gbps data rate, supports lane polarity reversal and link reversal, optimising PCB layout.

Low Power Consumption and Power Management:

Supports ACPI (Advanced Configuration and Power Interface), optimising operating system power management.

Compliant with IEEE 802.3az-2010 (Energy Efficient Ethernet, EEE), reducing power consumption during low link utilisation.

Supports remote wake-up (WOL), including AMD Magic Packet and Microsoft Wake-up Frame.

Advanced Data Optimisation:

Supports cross-detection and automatic correction, adaptive equalisation, and crosstalk cancellation to improve signal integrity.

Supports 9K-byte jumbo frames to enhance large data transmission efficiency.

Provides hardware checksum offloading (IPv4/IPv6/TCP/UDP) to reduce CPU load.

Embedded OTP memory:

Replaces external EEPROM (93C46/93C56/93C66) to simplify design.


RTL8111F-CGT packaging and operating parameters

Package: 48-QFN (environmentally friendly package)

Operating voltage: 1.8V / 2.5V / 3.3V

Operating temperature: Industrial standard


RTL8111F-CGT Typical Applications

Motherboard-integrated gigabit network card

Laptop PCIe network card

Server/workstation network interface

Industrial embedded systems
