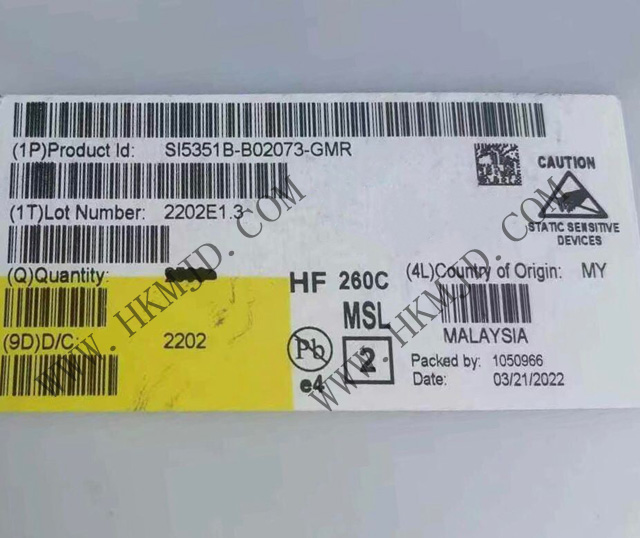

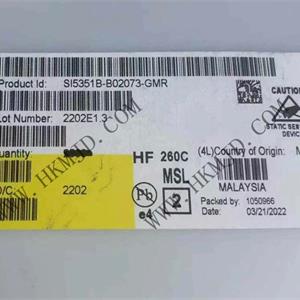

For picture reference, please see the specifications
< >

Commodity Model:SI5351B-B02073-GMR

Trade Name:Clock Generator

Brand:Skyworks

Particular Year:22+

Package:QFN-20

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Skyworks
Model
SI5351B-B02073-GMR
Package
QFN-20
Describe
I²C Programmable Arbitrary Frequency CMOS Clock Generator + VCXO

Product Description

The SI5351B-B02073-GMR is an I2C-configurable clock generator that is particularly well suited for replacing crystals, crystal oscillators, voltage-controlled crystal oscillators (VCXOs), phase-locked loops (PLLs), and fan-out buffers in cost-sensitive applications.


Based on a PLL/VCXO + high-resolution MultiSynth divider architecture, the SI5351B-B02073-GMR can generate arbitrary frequencies up to 200 MHz on each output with an error of 0 ppm.


The SI5351B-B02073-GMR incorporates an internal VCXO, enabling flexible replacement of free-running clocks and synchronised clocks. It eliminates the need for high-cost custom tunable crystals while providing reliable operation over a wide tuning range.


SI5351B-B02073-GMR Features and Specifications

I2C Programmable: User-defined configuration via the I2C interface allows flexible setting of frequency and output parameters.

High-Precision Frequency Synthesis: Precise frequency synthesis is achievable on each output with an error of 0 ppm.

Low Jitter: Output period jitter is less than 70 ps pp.typ, suitable for applications requiring high clock accuracy.

Multiple Input Options: Supports external crystal (XTAL), control voltage input (VC), or clock input (CLKIN), depending on the device version (A/B/C).

Spread Spectrum Functionality: Configurable spread spectrum functionality helps reduce electromagnetic interference (EMI).

Static phase offset support: Supports static phase offset, suitable for applications requiring precise clock alignment.

High-linearity VCXO: Integrated high-linearity VCXO eliminates the need for an external adjustable crystal, reducing system cost.


SI5351B-B02073-GMR Technical Specifications

Operating frequency range: 2.5 kHz to 200 MHz.

Number of outputs: 8 LVCMOS outputs.

Supply voltage: 2.25V to 3.6V.

Operating temperature range: -40°C to 85°C (TA).

Package type: 20-QFN (4x4mm) package with exposed pad, suitable for surface mount.

Input options: Supports external crystal (25 or 27 MHz), clock input (10 MHz to 100 MHz), and voltage-controlled input.

Output jitter: <70 ps pp.typ.

Frequency stability: Maintains high stability over a wide temperature range.


SI5351B-B02073-GMR Product Applications

Audio/video equipment, gaming

Printers, scanners, projectors

Handheld instruments

Laser rangefinders

Residential gateways

Network/communications

Servers, storage

XO replacement
