Trade Name:IMUs (Inertial Measurement Units)
Brand:ADI
Particular Year:25+
Package:ML-24
Delivery Date:New and original
Stock: 2500pcs

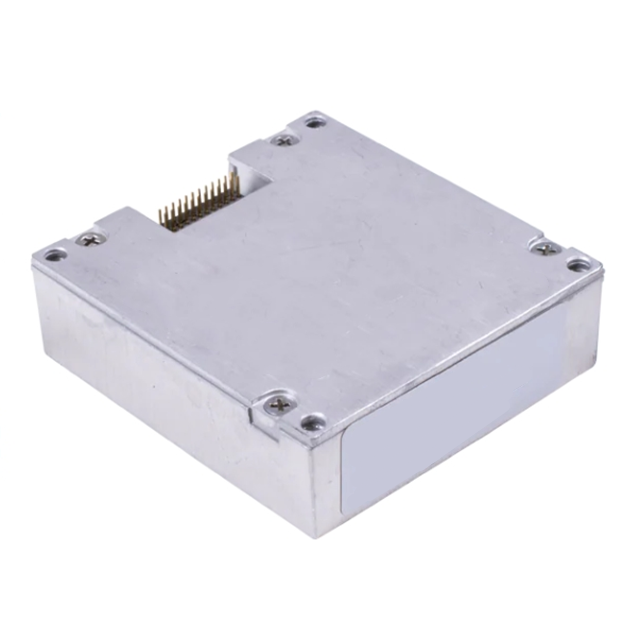

The ADIS16486BMLZ is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer. Each inertial sensor built into the ADIS16486BMLZ combines industry-leading iMEMS® technology with signal conditioning capabilities that optimize dynamic performance. Factory calibration is carried out for the sensitivity, bias, alignment and linear acceleration (gyroscope bias) of each sensor. Therefore, each sensor has a dynamic compensation formula that can provide precise sensor measurements.
Its main features include:
Three-axis digital gyroscope, dynamic range ±450°/ second (minimum value)
The misalignment error between axes is ±0.018° (typical value)
The operation bias stability is 5.3°/ hour (typical value)
The Angle random walk is 0.25°/√hr (typical value)
The nonlinearity of FS is 0.01%
Three-axis digital accelerometer, dynamic range ±18 g (minimum value)
Three-axis, Angle increment and velocity increment output
Sensitivity, offset and axial alignment of factory calibration
Calibration temperature range: -40 °C to +85°C
Compatible with SPI
Single VDD power supply operation: 3.0V to 3.6V
Mechanical shock survival capability of 2000 g
Programmable operation and control
Automatic and manual offset correction control
4 FIR filter banks and 120 configurable taps
Digital input and output: Data-ready alert indicator, external clock
Status monitoring alert
The turn-off and sleep modes for power management
Optional external synchronous input clock: 2.4 kHz (maximum value)
The inertial sensor continuously self-checks
Inertial sensors self-check as needed
Continuous memory testing based on CRC
Operating temperature range: -40 °C to +105°C
Application field
The ADIS16486BMLZ sensor is widely used in various fields:
Altitude heading reference system
Platform stability and control
Navigation for driverless vehicles
Robots and instruments
Model
Brand
Package
Quantity
Describe
ST
14-LGA
2000
6-axis IMU (Inertial Measurement Unit), integrated with a high G-value accelerometer
ST
LGA
3000
iNEMO 6DoF Inertial Measurement Unit (IMU) with advanced digital functions and finite state machine
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
The full name of Analog Devices is Analog Devices, Inc. (ADI). As an outstanding supplier specializing in semiconductor sensors and signal processing ICs, adi regards innovation, performance and excellence as the cultural pillars of the company and ha…
ADMV1239BBCZ

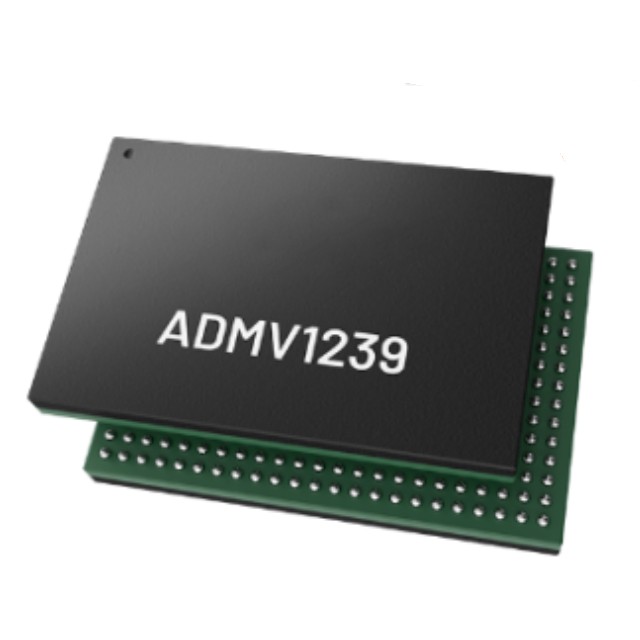

ADMV1239BBCZ is an integrated single-chip solution featuring a dual-channel upconverter, dual-channel downconverter, and beamformer operating in the 37.0 GHz to 43.5 GHz mmWave 5G frequency band.ADAR4001ACPZ

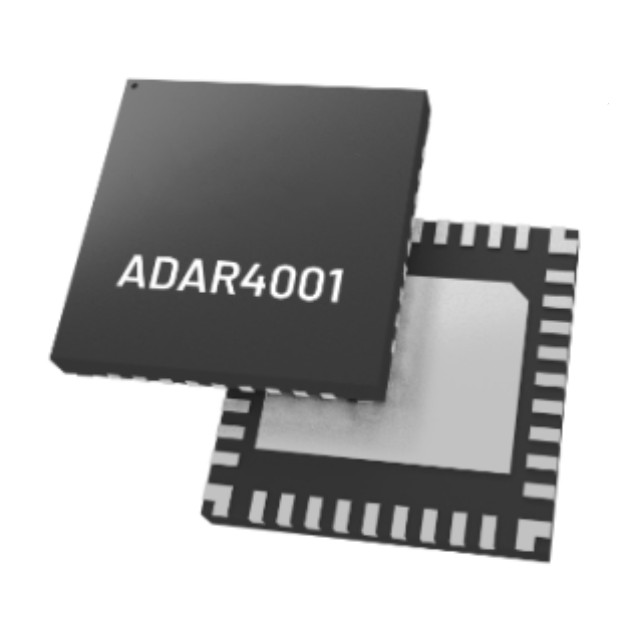

The ADAR4001ACPZ is a 2 GHz to 18 GHz quad-input, single-output beamformer IC (BFIC) that is optimized for phased array receive applications.ADAR4000ACPZ
The ADAR4000ACPZ is a 2 GHz to 18 GHz single-input, four-output beamforming IC (BFIC) optimised for phased array transmit applications.ADAR3007ABCZ

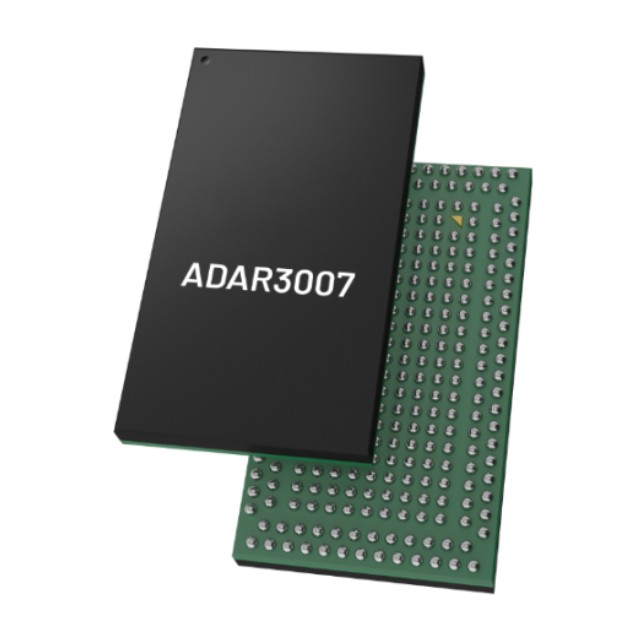

The ADAR3007ABCZ is a high-performance Ku-band beamformer.ADAR3006ABCZ

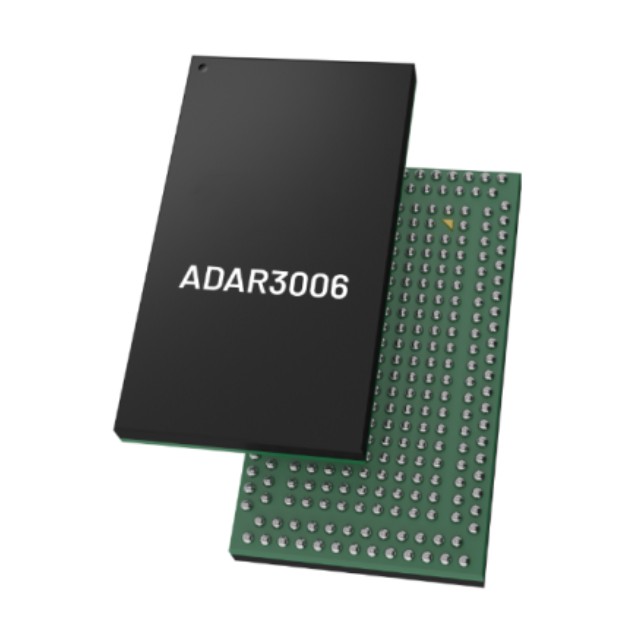

The ADAR3006ABCZ is a high-performance 4-beam/4-element beamformer designed for Ku-band applications from 10.7 GHz to 12.75 GHz.ADG1401BRMZ
