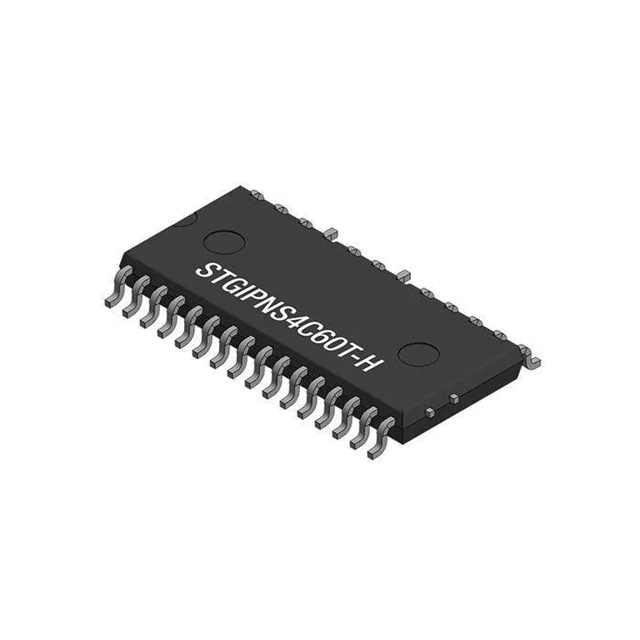

The STGIPNS4C60T-H is a compact and high-performance AC motor driver with a simple yet robust design. Composed of six IGBTs with freewheeling diodes and three half-bridge HVIC for gate drive control, it features low electromagnetic interference (EMI) and optimized switching speed. Its characteristics and main specifications are as follows:

Characteristics

It includes an IPM 3A, 600V, 3-phase IGBT inverter bridge for the gate drive control IC and freewhead diode

Low electromagnetic interference is achieved through optimization

Negative temperature coefficient of VCE(sat)

3.3V, 5V, 15V CMOS/TTL hysteresis input comparators and pull-down/pull-up resistors

Under-voltage locking

Internal bootstrap diode

Interlocking function

Turn-off function

A comparator for overheat and overcurrent fault protection

An operational amplifier capable of achieving advanced current detection

The lead-out wires have been optimized to achieve an easy board layout

Main specifications

Type: IGBT

Configuration: Three-phase inverter

Current: 5 A

Voltage: 600 V

Voltage - Isolation: 1000Vrms

Installation type: Surface mount type

Package/Shell: NSDIP-26

The optimized package of STGIPNS4C60T-H not only features heat resistance but is also highly compact, making it suitable for built-in motor applications or other low-power applications with limited assembly space. Typical applications include three-phase inverters for motor drivers, dishwashers, refrigerator compressors, heating systems, air conditioning fans, as well as drainage and circulation pumps.
