Service Telephone:86-755-83294757

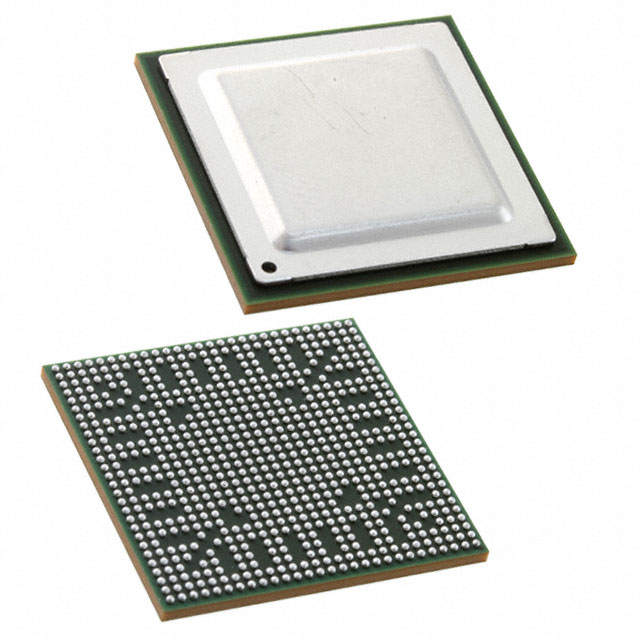

Trade Name:TMS320DM8127SCYE3
Data Manual:TMS320DM8127SCYE3.pdf
Brand:TI
Particular Year:23+
Package:684-BFBGA
Delivery Date:New and Original
Stock: 1000pcs
The TMS320DM8127SCYE3 processor also includes the High Definition Video and Imaging Co-Processor 2 (HDVICP2). Co-processor 2 (HDVICP2) offloads many video and imaging processing tasks from the DSP core, making more DSP MIPS available for common video and imaging algorithms. In addition, the TMS320DM8127SCYE3 DaVinci digital media processor provides a complete set of development tools for both ARM and DSP, including a C compiler, a DSP assembly optimiser to simplify programming and scheduling, and a Windows™ debugger interface to view the execution of the source code. tms320dm8127scye3 floating point The DSP processor uses 32KB of L1 programme memory with EDC and 32KB of L1 data memory. Up to 32KB of L1P can be configured as program cache. The rest of the memory is non-cacheable, no-wait-state programme memory. Up to 32KB of L1D can be configured as data cache.The DSP has 256KB of L2RAM, which can be defined as SRAM, L2 cache, or a combination of both. All C674x L3 and off-chip memory accesses are performed through the MMU.
Product Attributes
Type: Digital Media System-on-Chip (DMSoC)
Interfaces: CAN, Ethernet, I²C, McASP, McBSP, MMC/SD, SPI, UART, USB
Clock Rate: 750 MHz DSP, 1 GHz ARM®
Non-volatile memory: ROM (48kB)
On-chip RAM: 832kB
Voltage - I/O: 1.5V, 1.8V, 3.3V
Voltage - Core: 1.15V
Operating Temperature: 0°C ~ 90°C (TJ)
Mounting Type: Surface Mount
Package/Housing: 684-BFBGA, FCBGA
Supplier Device Package: 684 Pin FCBGA (23x23)
Model
Brand
Package
Quantity
Describe
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
