Trade Name:Digital Signal Processor
Brand:TI
Particular Year:24+
Package:FCBGA-529
Delivery Date:New and Original
Stock: 2000pcs
TMS320DM6467CCUTD7 is High-Performance Digital Media System-on-Chip.
Feature of TMS320DM6467CCUTD7
594-, 729-MHz C64x+™ Clock Rate
297-, 364.5-MHz ARM926EJ-Strade; Clock Rate
Eight 32-Bit C64x+ Instructions/Cycle
4752, 5832 C64x+ MIPS
Fully Software-Compatible With C64x/ARM9™
32-Bit Host Port Interface (HPI)
VLYNQ™ Interface (FPGA Interface)
Two Pulse Width Modulator (PWM) Outputs
ATA/ATAPI I/F (ATA/ATAPI-6 Specification)
Up to 33 General-Purpose I/O (GPIO) Pins (Multiplexed With Other Device Functions)
On-Chip ARM ROM Bootloader (RBL)
Individual Power-Saving Modes for ARM/DSP
Flexible PLL Clock Generators
IEEE-1149.1 (JTAG) Boundary-Scan-Compatible

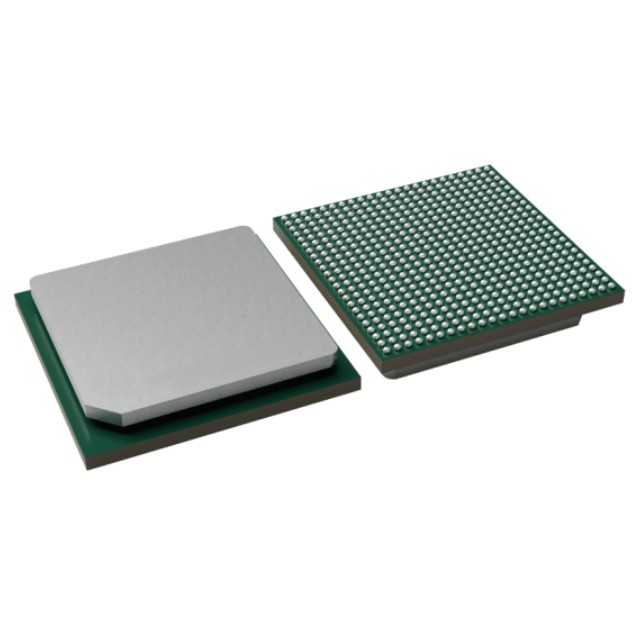

529-Pin Pb-Free BGA Package (CUT Suffix), 0.8-mm Ball Pitch
0.09-µm/7-Level Cu Metal Process (CMOS)
3.3-V and 1.8-V I/O, 1.2/1.05-V Internal
Applications of TMS320DM6467CCUTD7
Video Encode/Decode/Transcode/Transrate
Digital Media
Networked Media Encode/Decode
Video Imaging
Video Infrastructure
Video Conferencing
