TMS320DM6467CCUTAV is High-Performance Digital Media System-on-Chip.

Feature of TMS320DM6467CCUTAV

594-, 729-MHz C64x+™ Clock Rate

297-, 364.5-MHz ARM926EJ-Strade; Clock Rate

Eight 32-Bit C64x+ Instructions/Cycle

4752, 5832 C64x+ MIPS

Fully Software-Compatible With C64x/ARM9™

32-Bit Host Port Interface (HPI)

VLYNQ™ Interface (FPGA Interface)

Two Pulse Width Modulator (PWM) Outputs

ATA/ATAPI I/F (ATA/ATAPI-6 Specification)

Up to 33 General-Purpose I/O (GPIO) Pins (Multiplexed With Other Device Functions)

On-Chip ARM ROM Bootloader (RBL)

Individual Power-Saving Modes for ARM/DSP

Flexible PLL Clock Generators

IEEE-1149.1 (JTAG) Boundary-Scan-Compatible

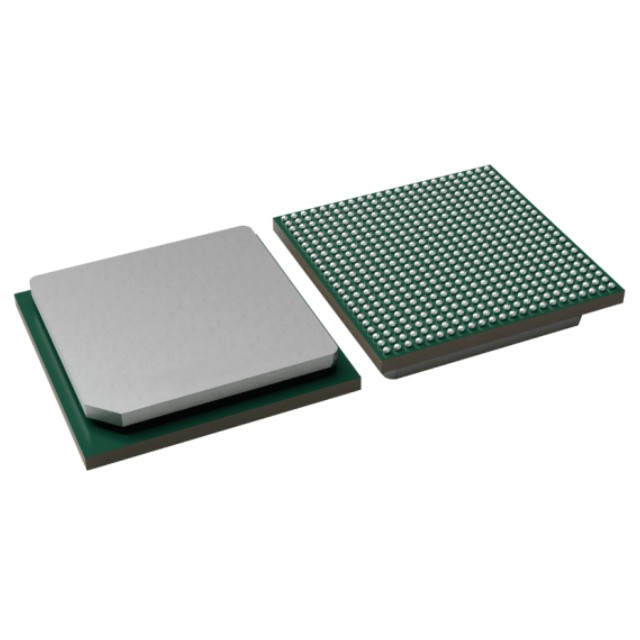

529-Pin Pb-Free BGA Package (CUT Suffix), 0.8-mm Ball Pitch

0.09-µm/7-Level Cu Metal Process (CMOS)

3.3-V and 1.8-V I/O, 1.2/1.05-V Internal

Applications of TMS320DM6467CCUTAV

Video Encode/Decode/Transcode/Transrate

Digital Media

Networked Media Encode/Decode

Video Imaging

Video Infrastructure

Video Conferencing
