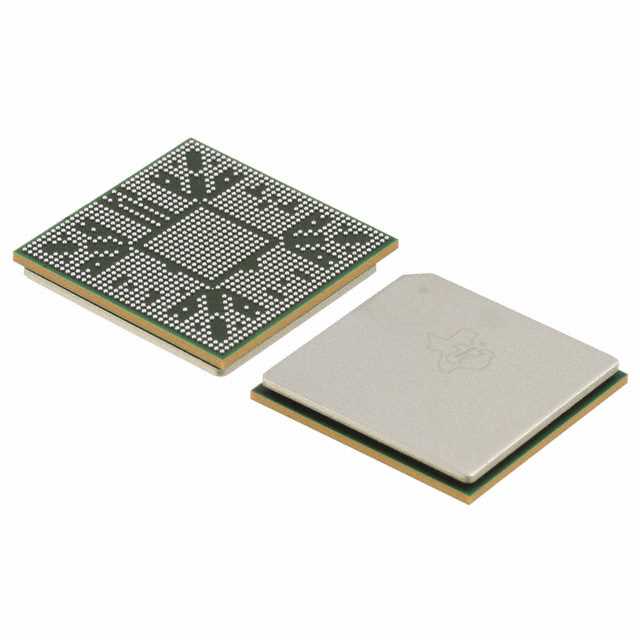

The TMS320DM8168CCYG2 enables Original Equipment Manufacturers (OEMs) and Original Design Manufacturers (ODMs) to quickly bring to market devices with robust operating system support, rich user interfaces and high processing performance. Maximise flexibility with a fully integrated hybrid processor solution that combines programmable video and audio processing with a highly integrated set of peripherals. key to the TMS320DM8168CCYG2 device are up to three high-definition video and imaging coprocessors (HDVICP2). Each co-processor can perform a single 1080p60 H.264 encode or decode, or multiple encodes and decodes at lower resolutions or frame rates. Multichannel HD-to-HD or HD-to-SD transcoding and multicode processing is also possible.

Product Attributes

Type: Digital Media System-on-Chip (DMSoC)

Interfaces: EBI/EMI, Ethernet, I²C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB

Clock rate: 1GHz DSP, 1.2GHz ARM®

Non-volatile memory: ROM (48kB)

On-Chip RAM: 1.5MB

Voltage - I/O: 1.5V, 1.8V, 3.3V

Voltage - Core: 1.00V

Operating Temperature: -40°C ~ 105°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 1031-BFBGA, FCBGA

Supplier Device Package: 1031-FCBGA (25x25)

Applications

• Video encoding, decoding, transcoding and transmission

• Video Infrastructure

• Video Security

• Media servers

• Video Conferencing

• Digital Signage
