PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks. PSoC™ 4100S Max is a member of the PSoC™ 4 platform architecture. It is a combination of a microcon troller with standard communication and timing peripherals, a capacitive sensing system with best-in-class performance, programmable general-purpose continuous-time analog blocks, and programmable connectivity.

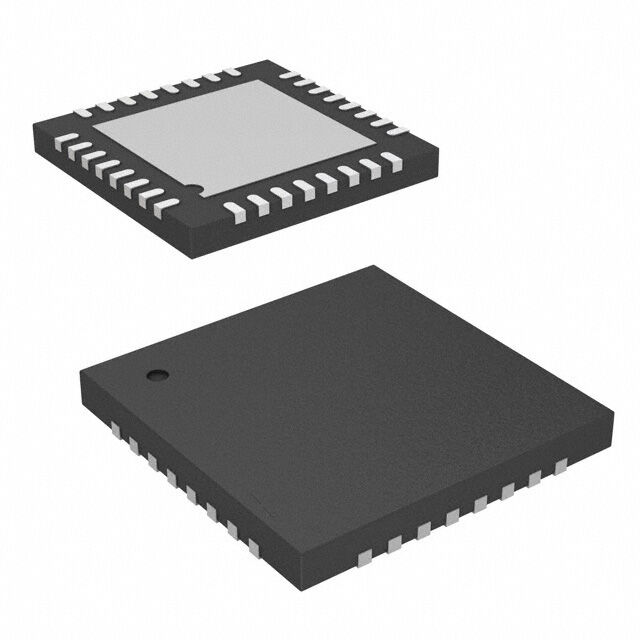

Features  Of CY8C4124LQI-S412

32-bit MCU subsystem

48 MHz Arm® Cortex®-M0+ CPU with single-cycle multiply

Up to 64 KB of flash with read accelerator

Up to 8 KB of SRAM

Programmable analog

Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability. Opamps can operate in deep sleep low-power mode

12-bit 1-Msps SAR ADC with differential and single-ended modes, and channel sequencer with signal averaging

Single-slope 10-bit ADC function provided by a capacitance sensing block

Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin

Two low-power comparators that operate in Deep Sleep low-power mode

Programmable digital

Programmable logic blocks allowing boolean operations to be performed on port inputs and outputs

Low-power 1.71-V to 5.5-V operation

Deep Sleep mode with operational analog and 2.5-µA digital system current

Capacitive sensing

Capacitive sigma-delta provides best-in-class signal-to-noise ratio (SNR) (>5:1) and water tolerance

LCD drive capability

LCD segment drive capability on GPIOs

Serial communication

Three independent run-time reconfigurable serial communication blocks (SCBs) with reconfigurable I2C, SPI, or UART functionality

Timing and pulse-width modulation

Five 16-bit Timer/Counter/Pulse-width Modulator (TCPWM) blocks

Center-aligned, edge, and pseudo-random modes

Comparator-based triggering of kill signals for motor drive and other high-reliability digital logic applications

Quadrature decoder

Up to 36 programmable GPIO pins

Any GPIO pin can be CAPSENSE™, analog, or digital

Drive modes, strengths, and slew rates are programmable

Clock sources

32 kHz watch crystal oscillator (WCO)

±2% internal main oscillator (IMO)

32 kHz internal low-power oscillator (ILO)

Applications Of CY8C4124LQI-S412
