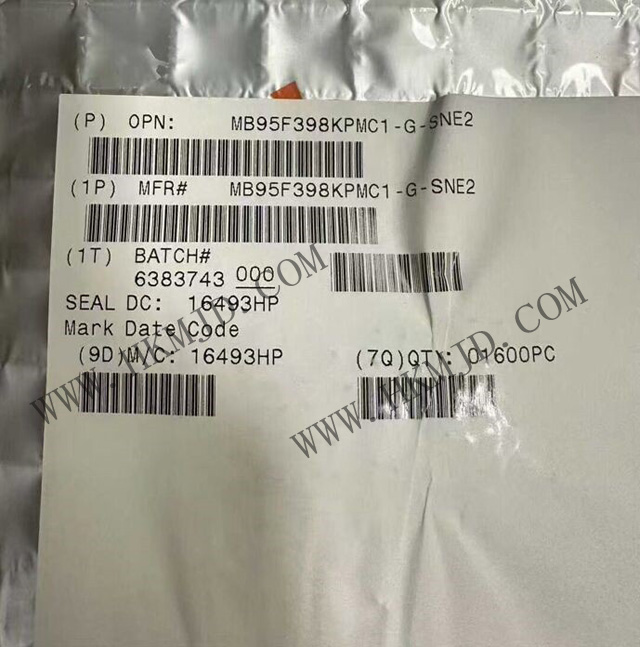

For picture reference, please see the specifications
< >

Commodity Model:MB95F398KPMC1-G-SNE2

Trade Name:8-bit Microcontroller - MCU

Brand:Cypress

Particular Year:16+

Package:LQFP52

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
MB95F398KPMC1-G-SNE2
Package
LQFP52
Describe
F²MC-8FX F²MC MB95390H Microcontroller IC 8-bit 16MHz 60KB (60K x 8) Flash memory 52-LQFP (10x10)

Product Description

MB95F398KPMC1-G-SNE2 is an 8-bit microcontroller (MCU) belonging to the F²MC-8FX series, packaged in a 52-LQFP (10×10mm) package. This chip is specifically designed for low-cost, high-performance embedded control applications, particularly suitable for motor control, home appliances, industrial automation, and other fields.


MB95F398KPMC1-G-SNE2 Core Features

Processor and Performance

8-bit F²MC-8FX core, operating at 16MHz

60KB Flash memory (60K × 8), supporting 100,000 erase/write cycles, with data retention for 20 years

1.98KB RAM (2032 × 8)

Peripherals and Interfaces

12-channel 8/10-bit ADC, supporting high-precision analogue signal acquisition

PWM, timers (8/16-bit), watchdog (WDT), and other motor control-specific peripherals

Communication interfaces: I²C, LINbus, SIO, UART/USART

Power and Operating Environment

Wide voltage range (2.4V to 5.5V), suitable for battery-powered devices

Industrial-grade temperature range (-40°C to 85°C)

Motor control optimisation

Built-in brushless DC (BLDC) motor control functionality, suitable for home appliances such as air conditioners, washing machines, and printers

Single-wire debugging interface, reducing the number of pins required for development and debugging


MB95F398KPMC1-G-SNE2 Typical Applications

Home appliance control (air conditioners, washing machines, microwave ovens)

Office equipment (printers, copiers)

Industrial automation (motor drives, sensor interfaces)
