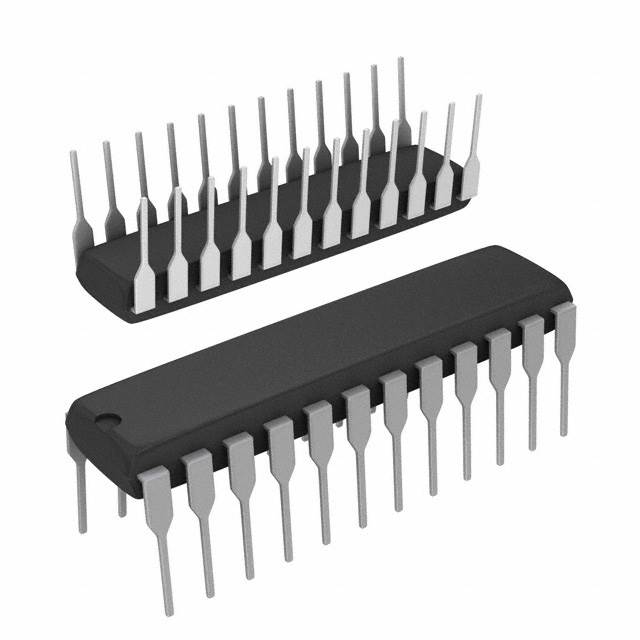

For picture reference, please see the specifications
< >

Commodity Model:CY7C63743-PC

Trade Name:8-bit Microcontroller - MCU

Brand:Cypress

Particular Year:25+

Package:PDIP-24

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
CY7C63743-PC
Package
PDIP-24
Describe
enCoRe™ USB Combination Low-Speed USB & PS/2 Peripheral Controller

Product Description

The CY7C63743-PC is an 8-bit RISC microcontroller introduced by Cypress, part of the enCoRe™ USB series, specifically designed for low-speed USB and PS/2 dual-mode peripheral control. The chip is packaged in a 24-pin DIP package, featuring 8KB of OTP program memory and 256 bytes of RAM, making it ideal for HID (Human Interface Device) applications such as mice, keyboards, and game controllers.


CY7C63743-PC Core Advantages

Dual-mode interface: Automatically switches between USB (low-speed) and PS/2 modes without requiring external components or GPIO configuration.

High integration: Built-in 3.3V regulator, SPI master/slave interface, and 16 programmable GPIOs (supporting 50mA drive current).

Low Power Design: Static current as low as 1µA (standby mode), with support for an internal wake-up timer.

Industrial-Grade Reliability: Operating temperature range of 0°C to 70°C, compliant with USB 2.0 and HID 1.1 specifications.


Product Attributes

Series: enCoRe™

Application: USB Microcontroller

Core Processor: M8B

Program Memory Type: OTP (8kB)

Controller Series: CY7C637xx

RAM Size: 256 x 8

Interface: PS/2, USB

I/O Count: 16

Voltage - Supply: 4V to 5.5V

Operating Temperature: 0°C to 70°C

Mounting Type: Through-Hole

Package/Case: 24-DIP (0.300", 7.62mm)

Supplier Device Package: 24-PDIP
