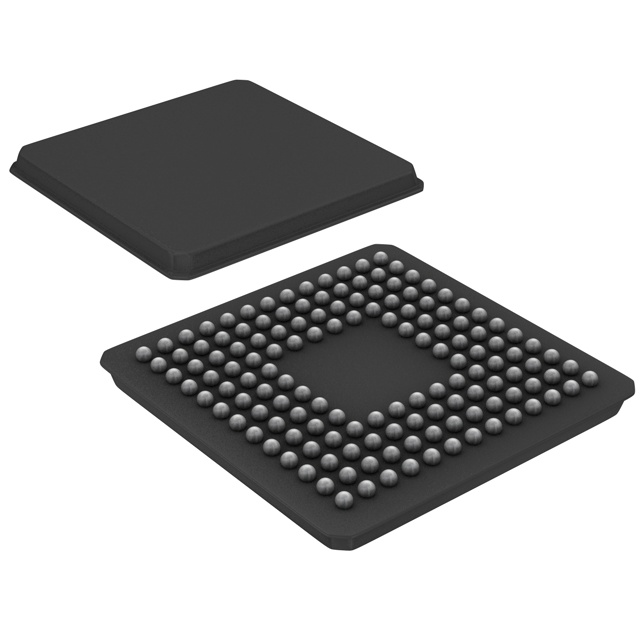

For picture reference, please see the specifications
< >

Commodity Model:CY9BF366RBGL-GK7E1

Trade Name:32-Bit Microcontroller - MCU

Brand:Cypress

Particular Year:25+

Package:FBGA-144

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
CY9BF366RBGL-GK7E1
Package
FBGA-144
Describe
160MHz, 32-bit ARM® Cortex®-M4F FM4 MB9B360R microcontroller IC, FBGA-144

Product Description

CY9BF366RBGL-GK7E1: 160MHz, 32-bit ARM® Cortex®-M4F FM4 MB9B360R microcontroller IC, FBGA-144


The MB9B360R series is a highly integrated 32-bit microcontroller designed specifically for high-performance embedded controllers, offering exceptional performance and highly competitive cost advantages. The series is based on the ARM® Cortex®-M4F processor, with built-in flash memory and SRAM, and includes peripheral functions such as motor control timers, analogue-to-digital converters (ADC), and communication interfaces (USB, UART, CSIO, I2C, LIN).


CY9BF366RBGL-GK7E1 Specifications:

Series:    MB9B360R

Mounting Style:    SMD/SMT

Package/Case:    PFBGA-144

Core:    ARM Cortex M4F

Program Memory Size:    512 kB

Data Bus Width:    32 bit

ADC Resolution:    12 bit

Maximum Clock Frequency:    160 MHz

Number of I/O Pins:    100 I/O

Data RAM Size:    64 kB

Power Supply Voltage - Minimum:    2.7 V

Supply Voltage - Maximum:    5.5 V

Minimum Operating Temperature:    -40 °C

Maximum Operating Temperature:    +105 °C

Analogue Supply Voltage:    5.5 V

DAC Resolution:    12 bits

Data RAM Type:    SRAM

Interface Types:    CSIO, I2C, LIN, UART, USB

ADC Channel Count:    24 Channels
