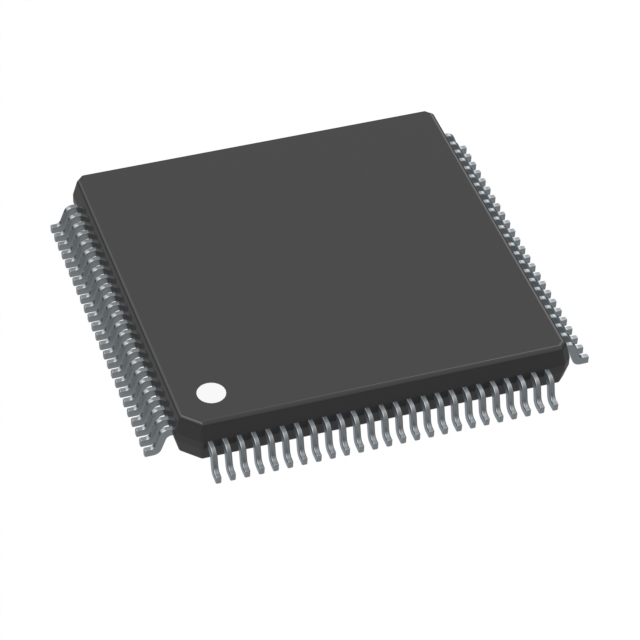

For picture reference, please see the specifications
< >

Commodity Model:CY8C4149AZI-S583

Trade Name:Microcontroller MCU

Brand:Cypress

Particular Year:25+

Package:100-LQFP

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
CY8C4149AZI-S583
Package
100-LQFP
Describe
32-Bit 48MHz ARM Cortex-M0+ PSOC™ 4 Microcontroller MCU

Product Description

PSoC™ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks. PSoC™ 4100S Max is a member of the PSoC™ 4 platform architecture. It is a combination of a microcon troller with standard communication and timing peripherals, a capacitive sensing system with best-in-class performance, programmable general-purpose continuous-time analog blocks, and programmable connectivity.


Feature Of CY8C4149AZI-S583

32-bit MCU subsystem

48-MHz Arm Cortex-M0+ CPU with single-cycle multiply

Up to 384 KB of flash with Read Accelerator

Up to32KB of SRAM

16-channel DMA engine

Programmable analog

Two opamps with reconfigurable high-drive external and high-bandwidth internal drive and Comparator modes and ADC input buffering capability. Opamps can operate in Deep Sleep low-power mode.

12-bit 1-Msps SAR ADC with differential and single-ended modes, and Channel Sequencer with signal averaging

Temperature sensor built into SAR ADC

Two low-power comparators that operate in Deep Sleep low-power mode

Programmable digital

Programmable Smart I/O logic blocks allowing Boolean operations to be performed on port inputs and outputs

Low-power 1.71-V to 5.5-V operation

Deep Sleep mode with operational analog and 3.7-µA digital system current

Capacitive sensing

Multi-sensing converter (MSC) provides best-in-class signal-to-noise ratio (SNR) (>5:1) and liquid tolerance for capacitive sensing

Infineon-supplied software middleware makes capacitive sensing design easy

Automatic hardware tuning (SmartSense)

Two MSC converters are provided

Autonomous channel scanning without CPU assistance

LCD Drive capability

LCD segment drive capability on GPIOs

I2S master transmitter

Cryptographic block

AES, SHA, TRNG, PRNG, and CRC functions

Serial communication

Five independent run- time reconfigurable serial communication blocks (SCBs) with re- configurable 12C, SPI,or UART functionality. High-speed I2C support is provided.
